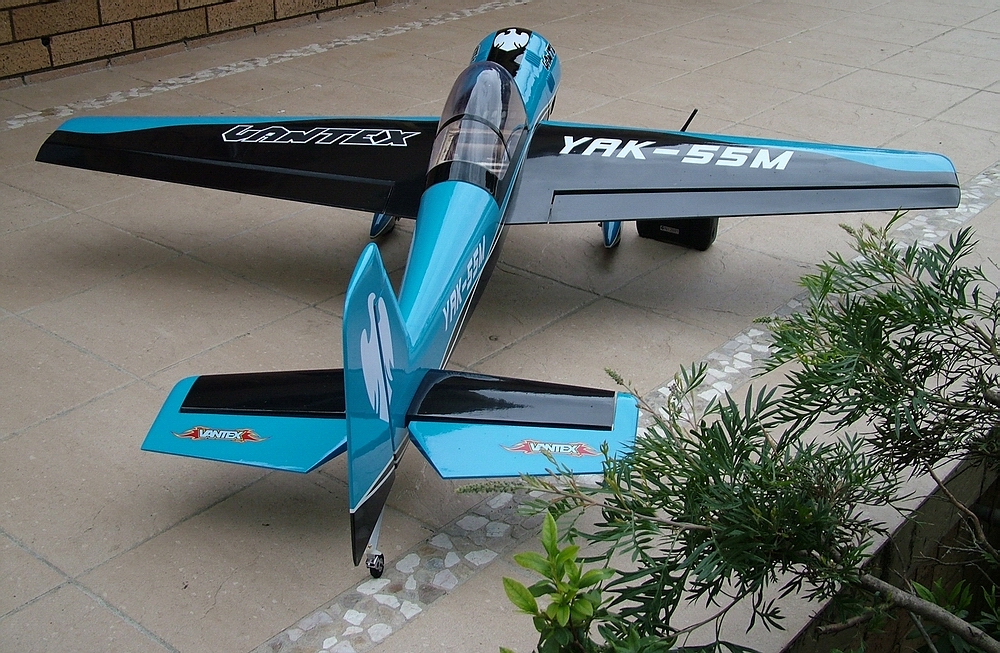

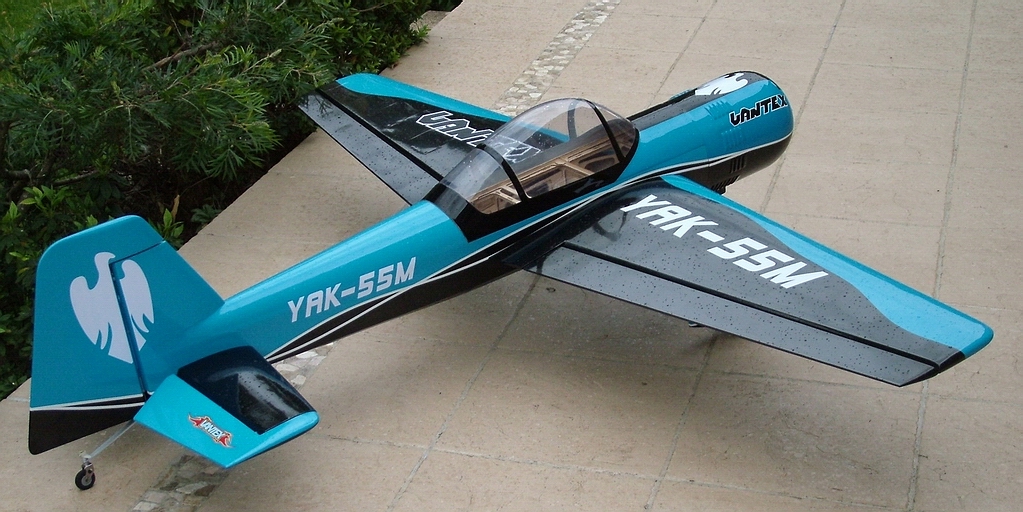

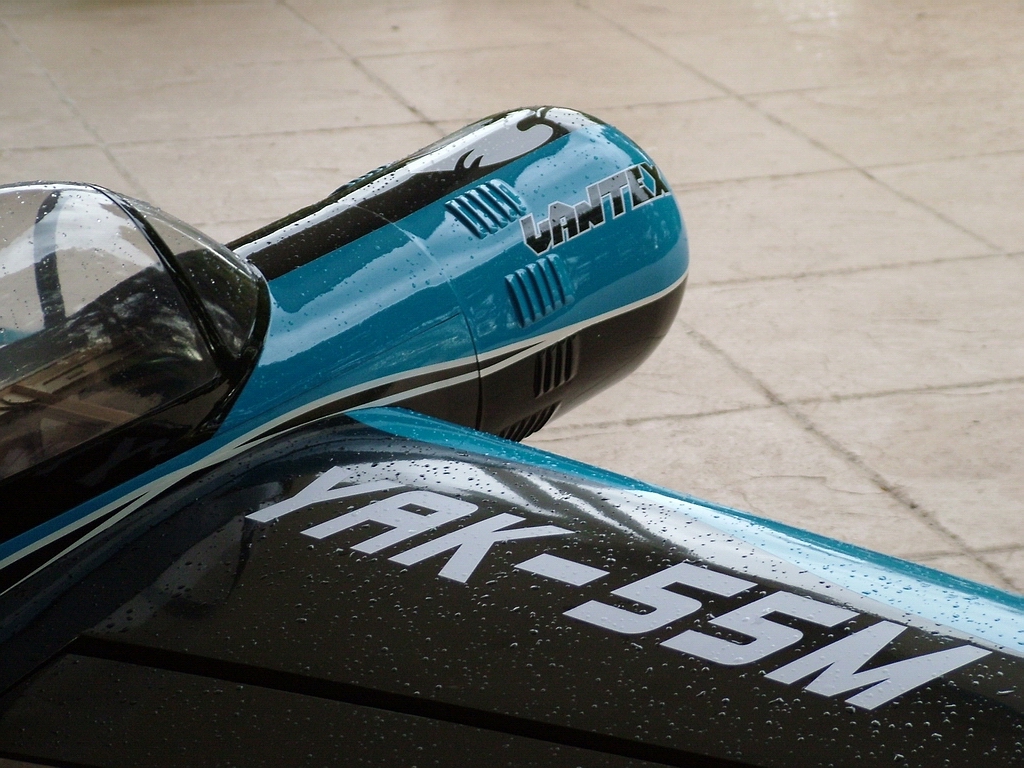

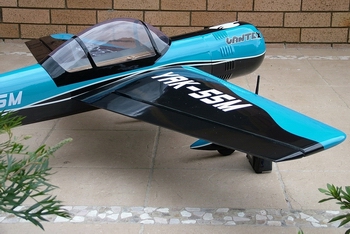

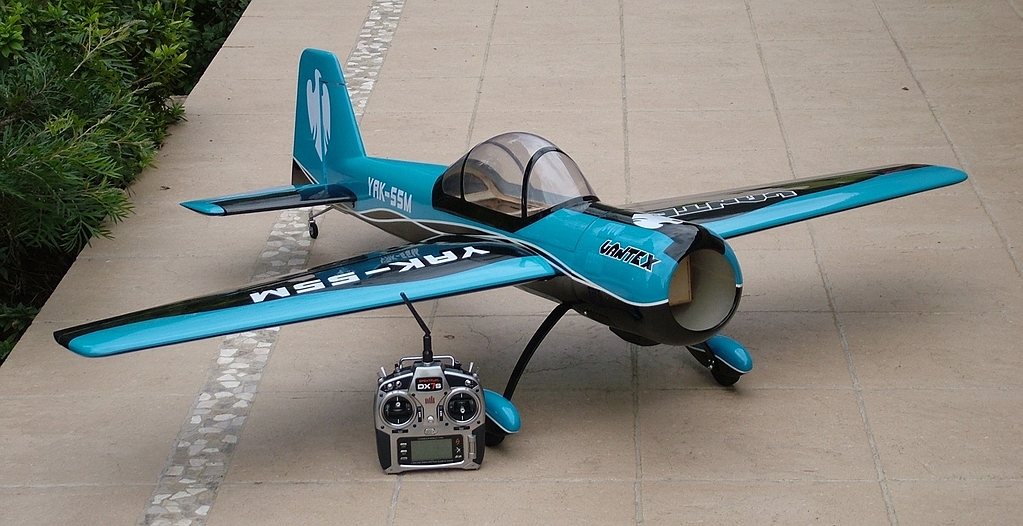

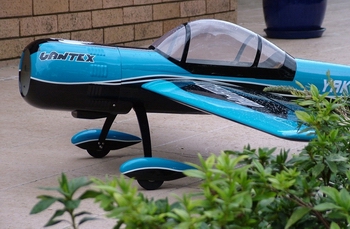

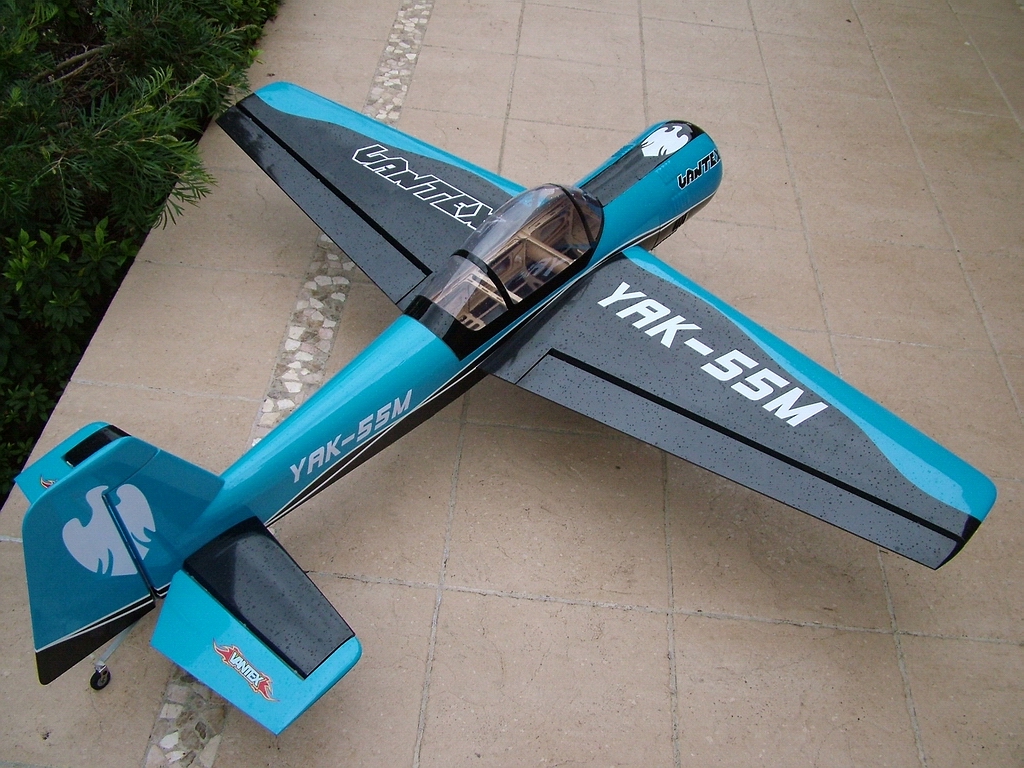

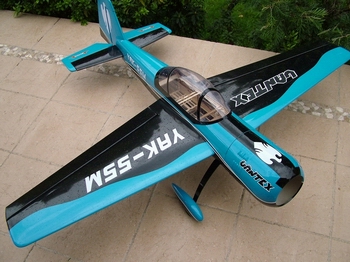

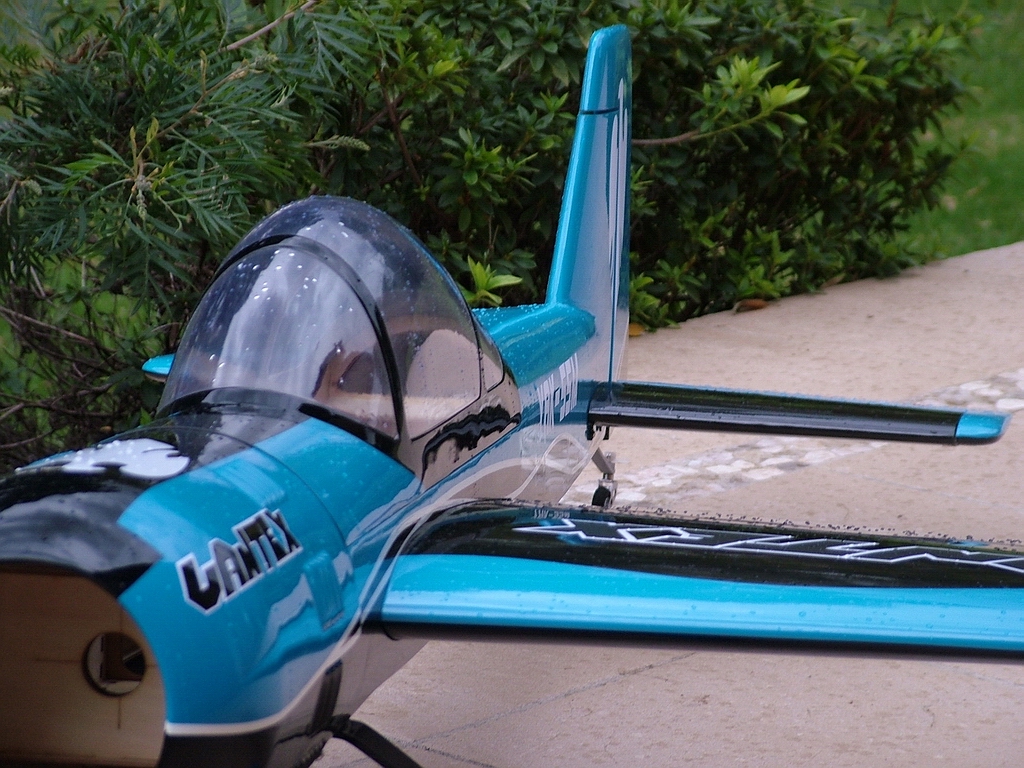

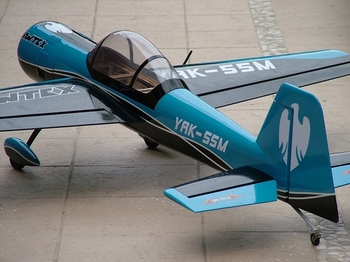

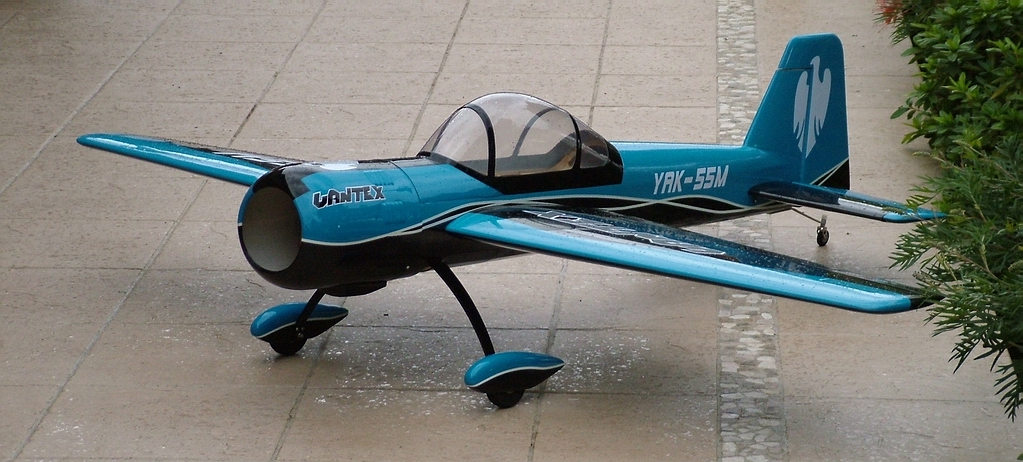

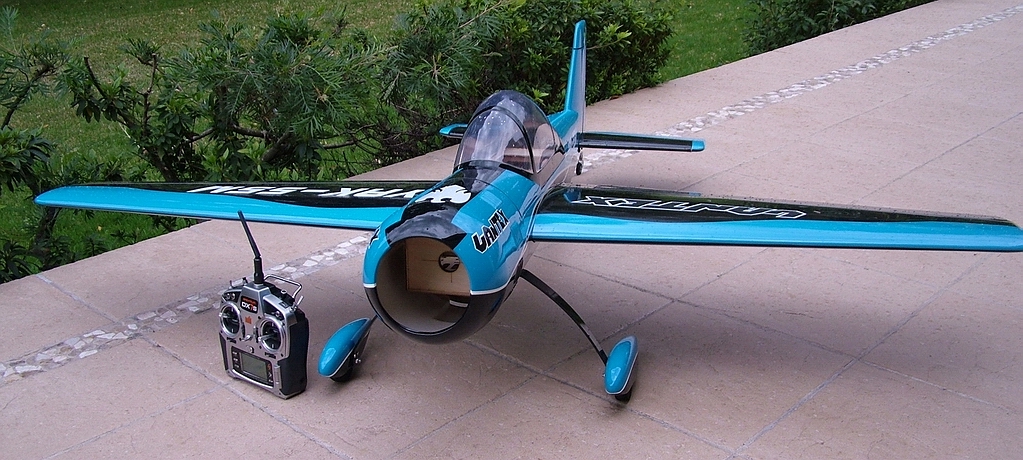

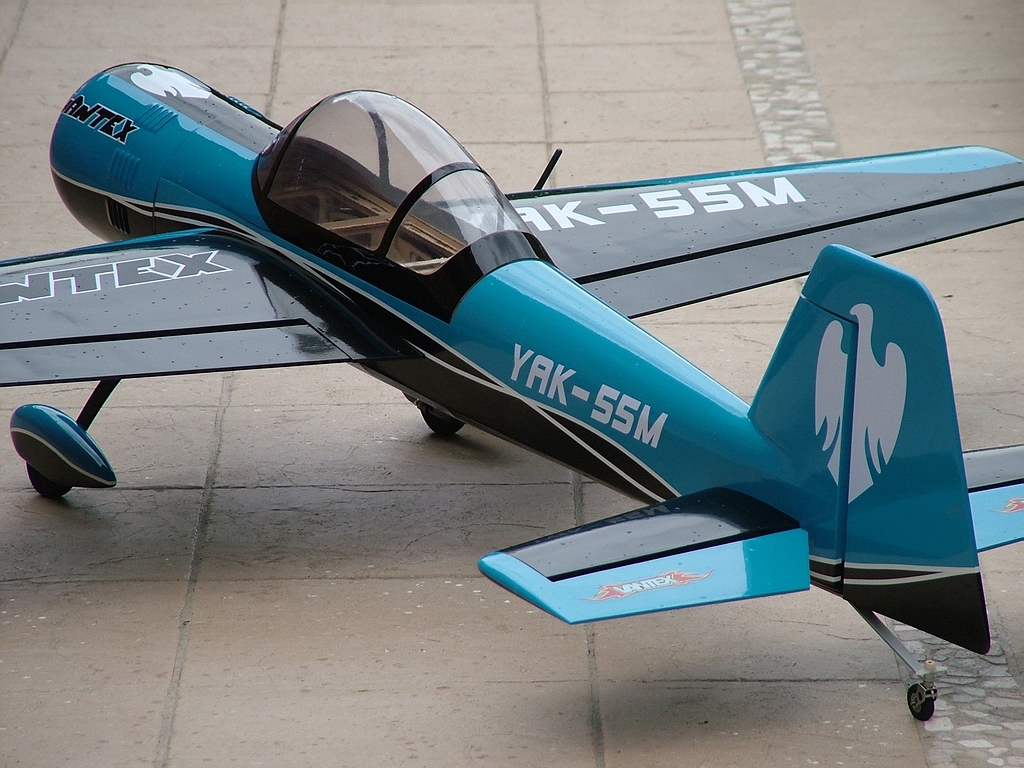

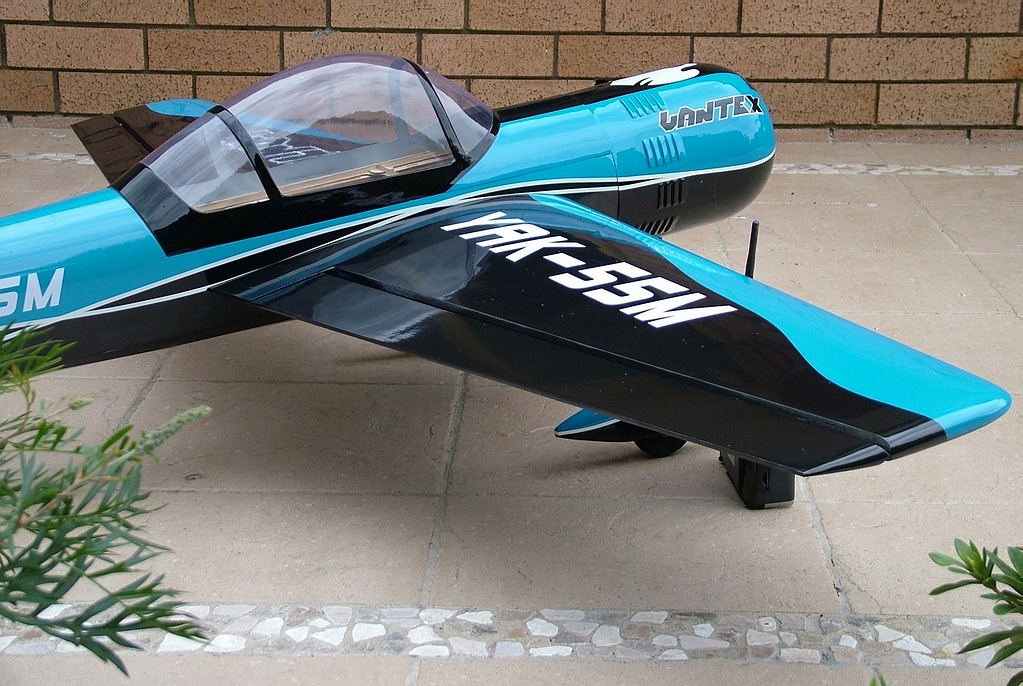

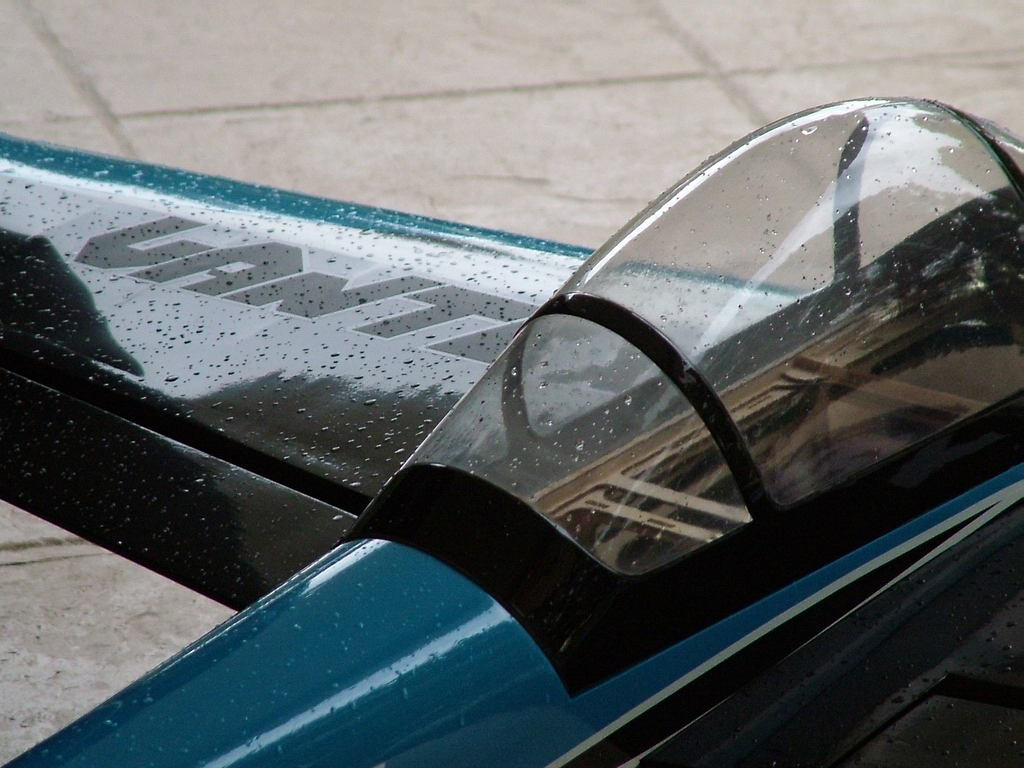

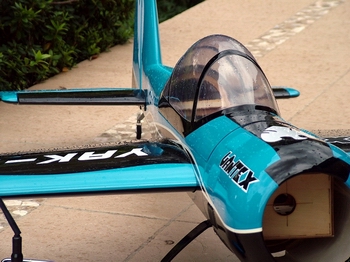

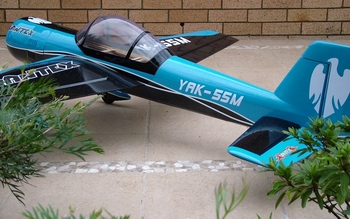

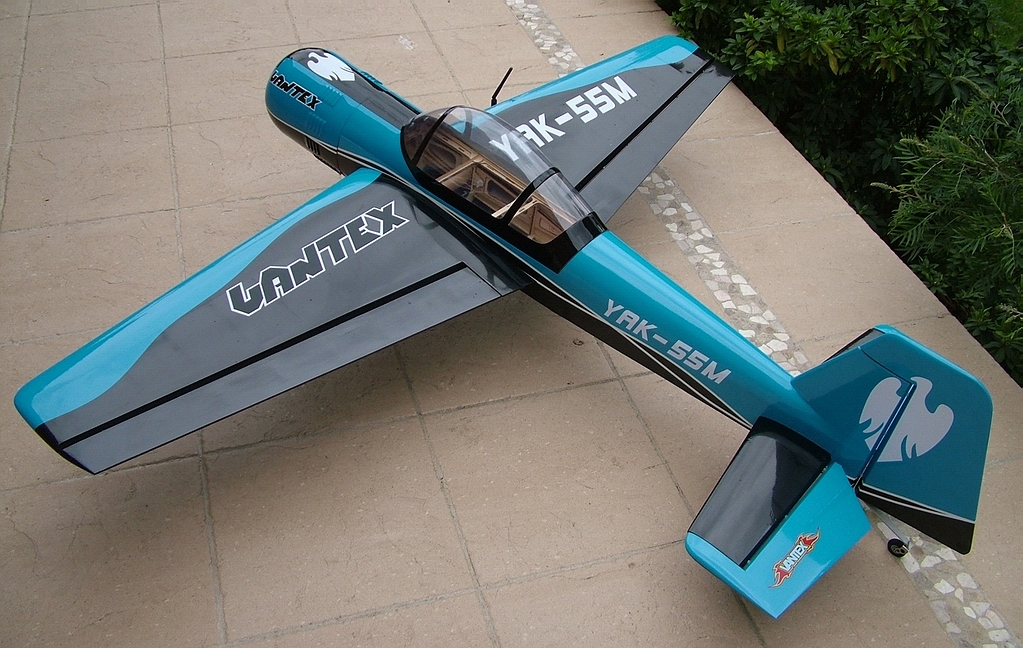

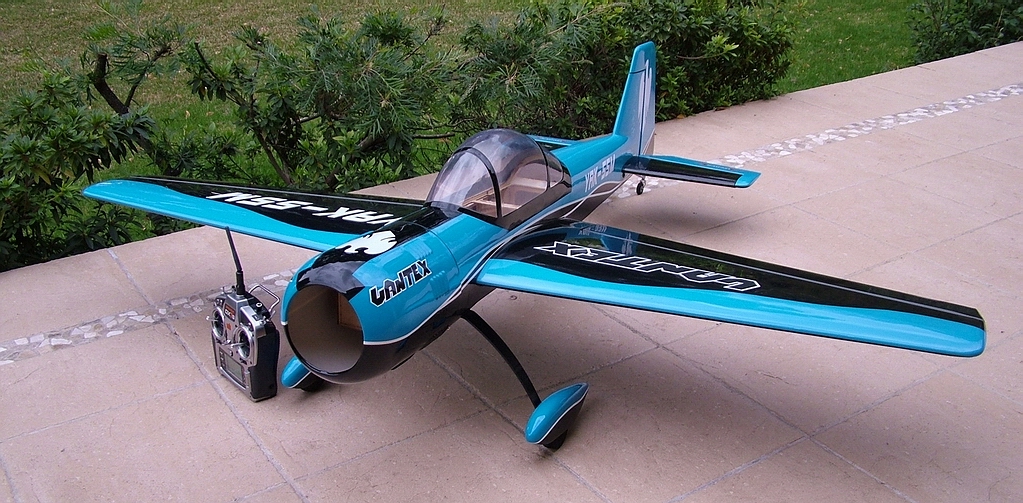

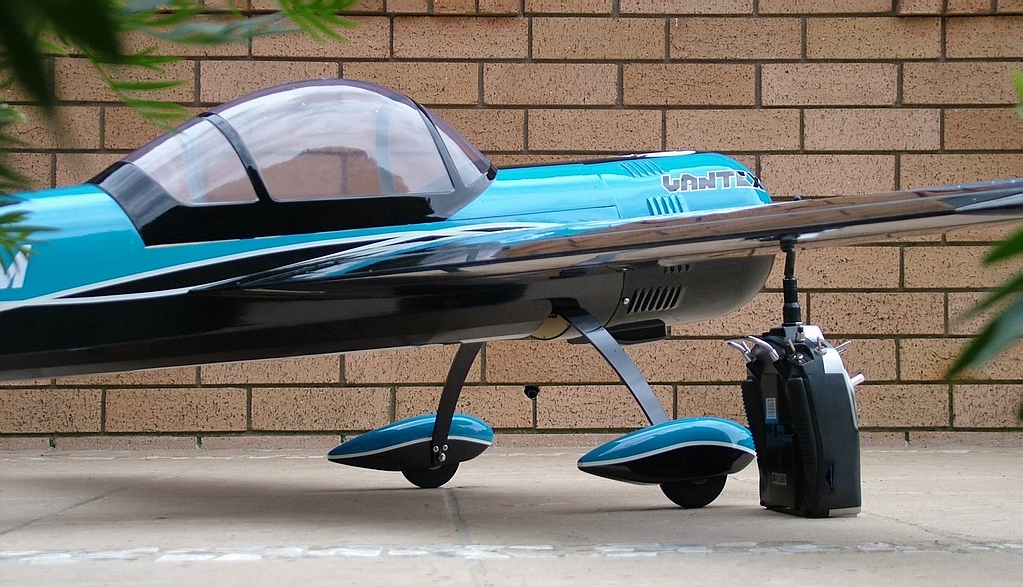

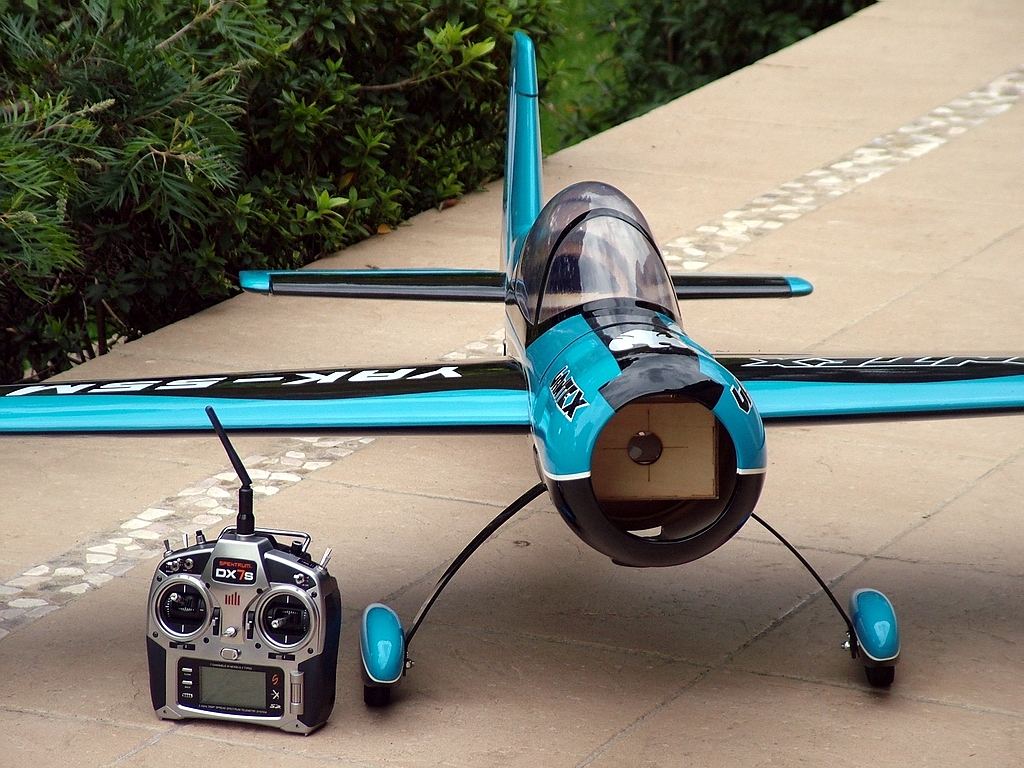

Yak-55M 1826mm   August - 2013


Statistics:
Wing Span:
Length:
Weight:
Wing Area:
Wing Loading:

Essential Features:


1,826mm
1,652mm
Approximately 4,100 grams ready to fly.
64dm²
Approximately 64grams/dmē - good for your preferred aerobatics!

 - Estimated Electric Power requirements to achieve 26cc 2C equivalent grunt:
   - 20x10 APC 2 blade prop.
   - 2000 Watt motor like the Turnigy G160 Brushless Outrunner 290kv.
   - 120 Amp HV controller implying the need for a UBEC to power the receiver.
   - 2x5S 5000 40c+ LiPo batteries in series to achieve 10S.
   - 5x Standard size metal geared servos.
