Statistics
Wing Span:
Length:
Chord:
Weight:
Wing Area:
Wing Loading:
Essential Features contributing to this loading:
Radio Setup:
Battery Access: |
1,795mm
1,300mm
280mm
2,340grams
50.26dm²
46.6grams/dmē - very slow flying! Down flaps make for instant takeoffs and
very sedate landings.
- Electric Powered using:
- 13" x 8" (330 x 203) blade.
- 833kv 450w outrunner - heaps of power for this model but 3D is
not possible!
- 60amp controller.
- 4S1P 2200 15c LiPo battery - 12minute flights with multiple
landings, when easy on the throttle!
- No extra weight added for COG maintenance.
Spektrum DX7 transmitter with AR7000 receiver (full range) with 4 standard
servos. Ailerons are independently controlled allowing for Flaperon setup.

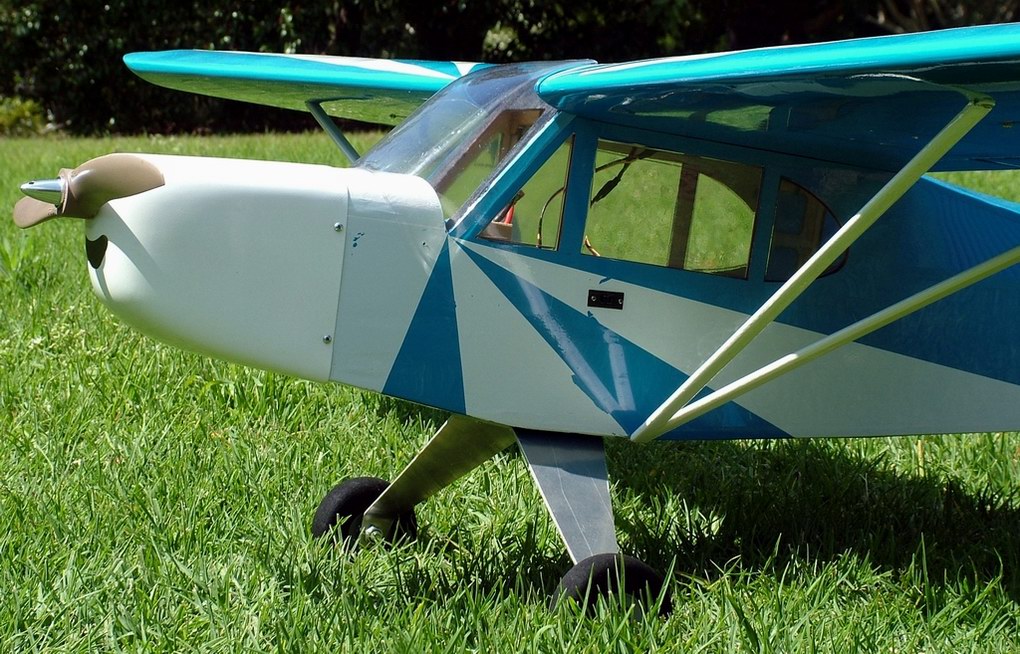

The front windscreen tilts up to allow access into the cabin. A larger battery
would fit quite easily.
|
