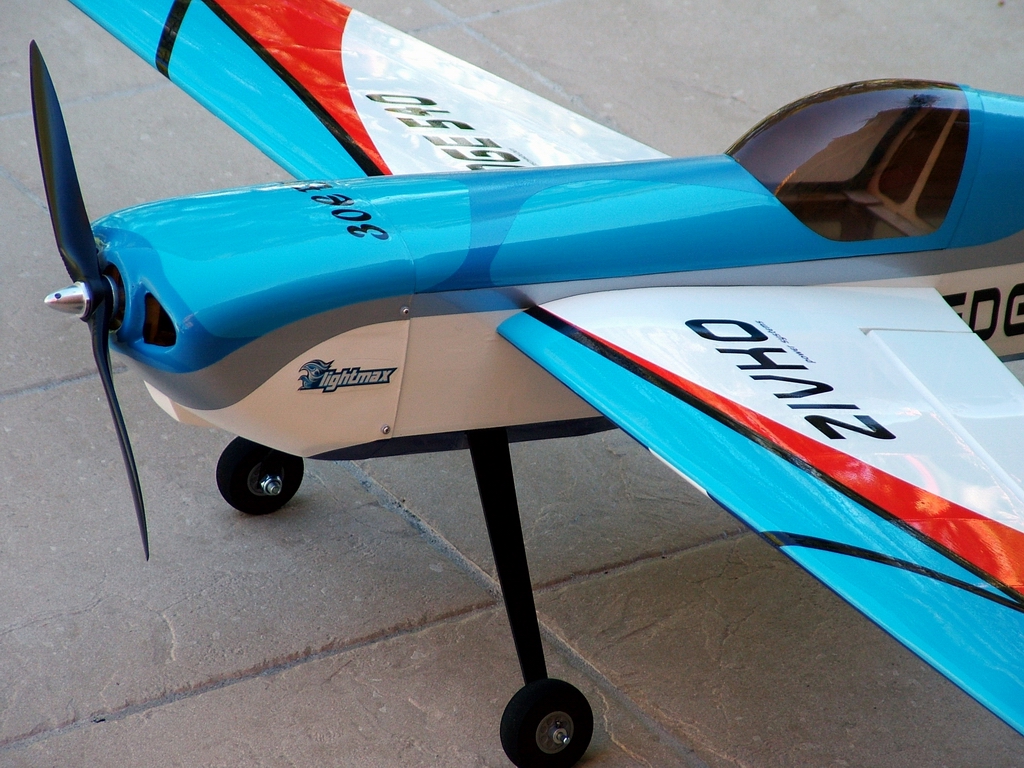

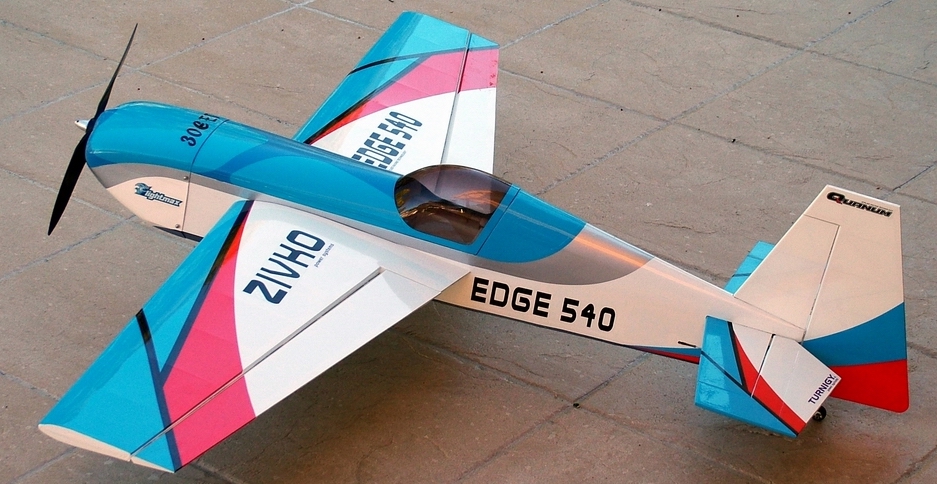

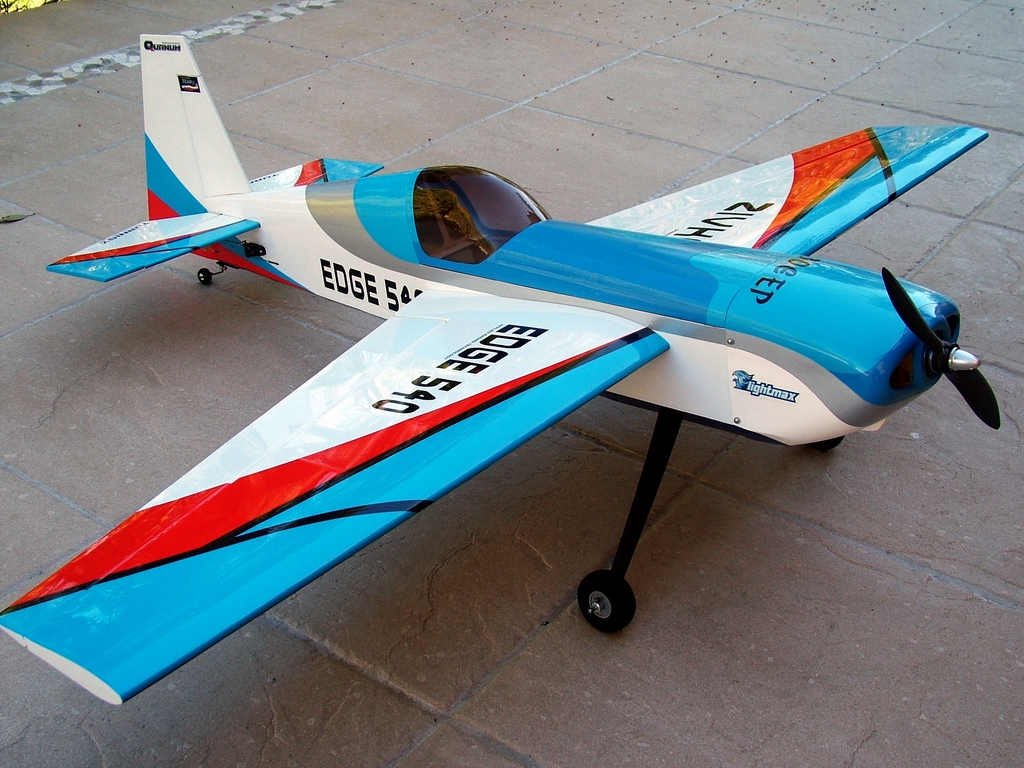

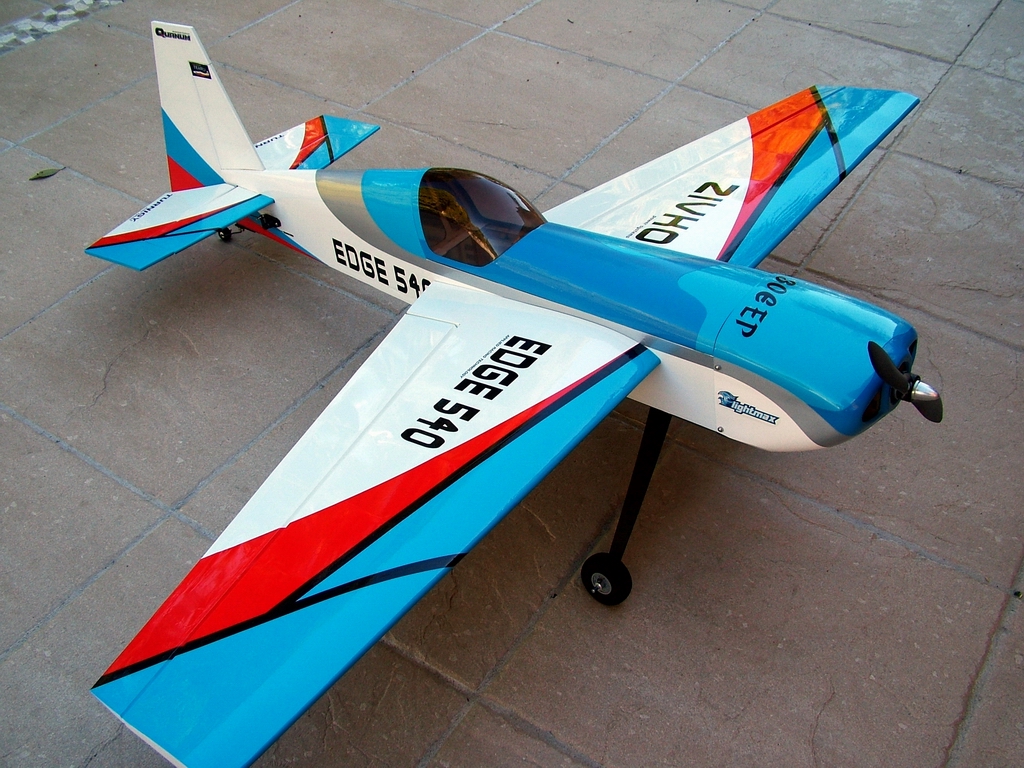

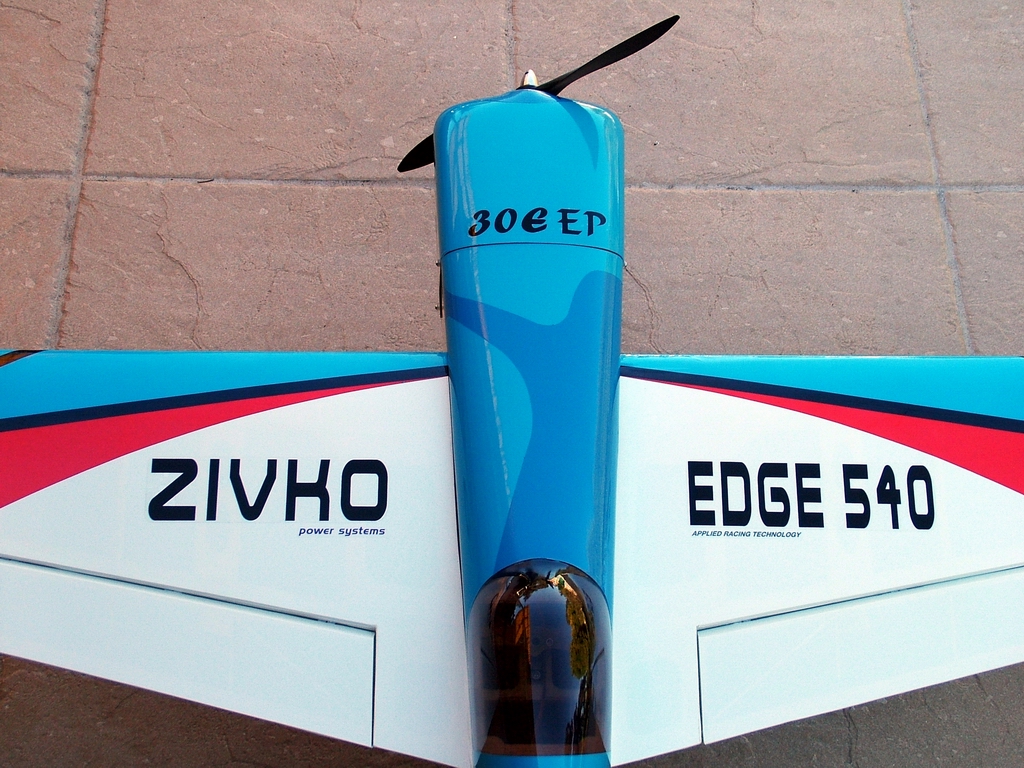

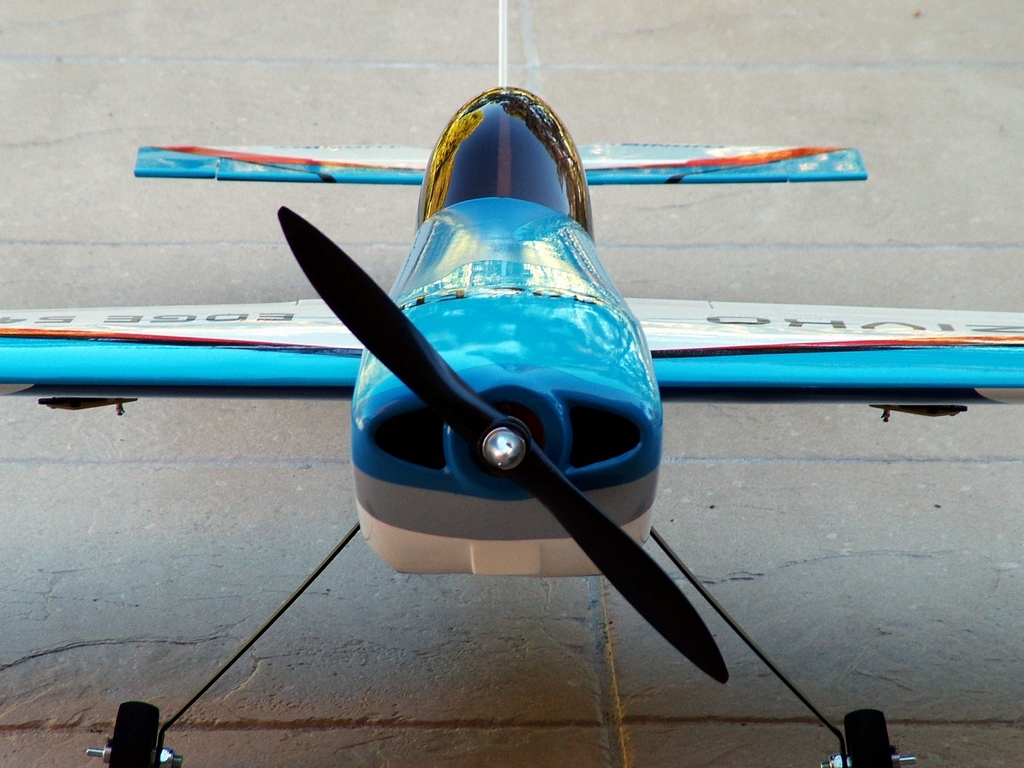

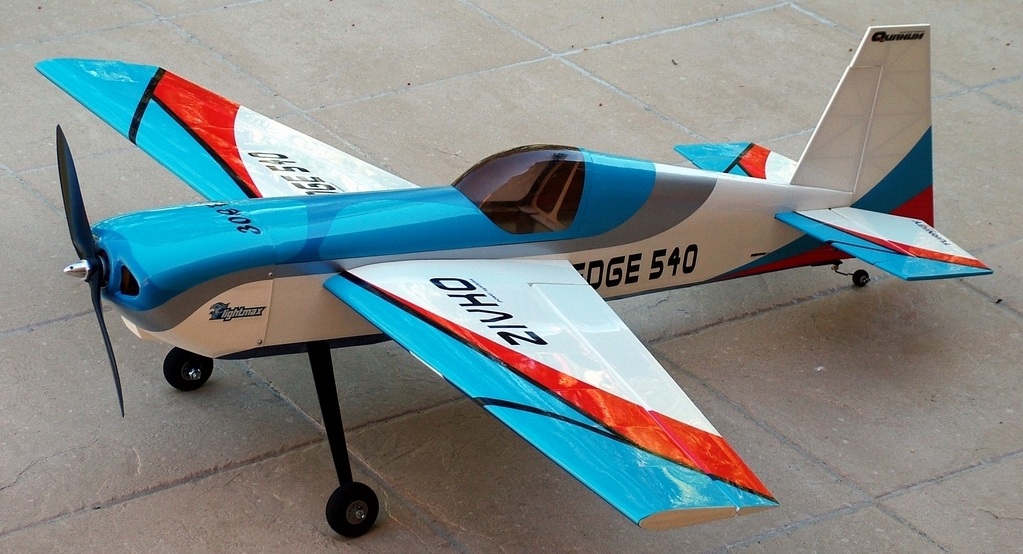

Zivko Edge 540 30e (Jim's Plane)                                                                                                           20-Aug-2010

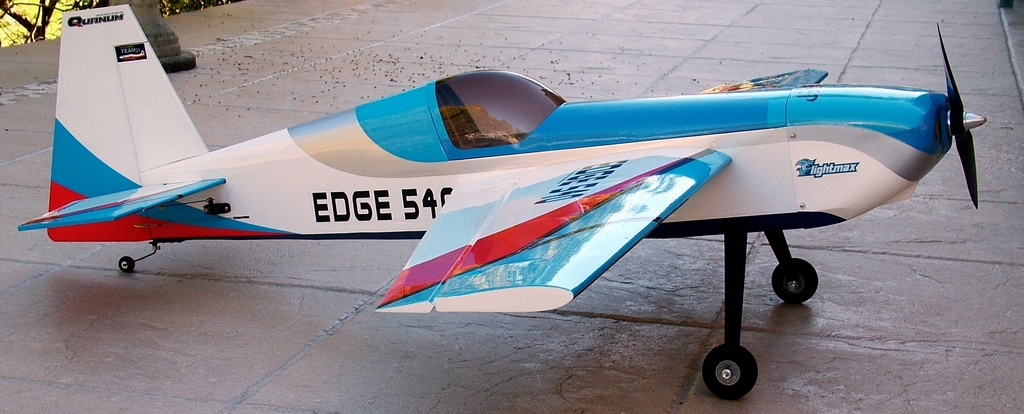

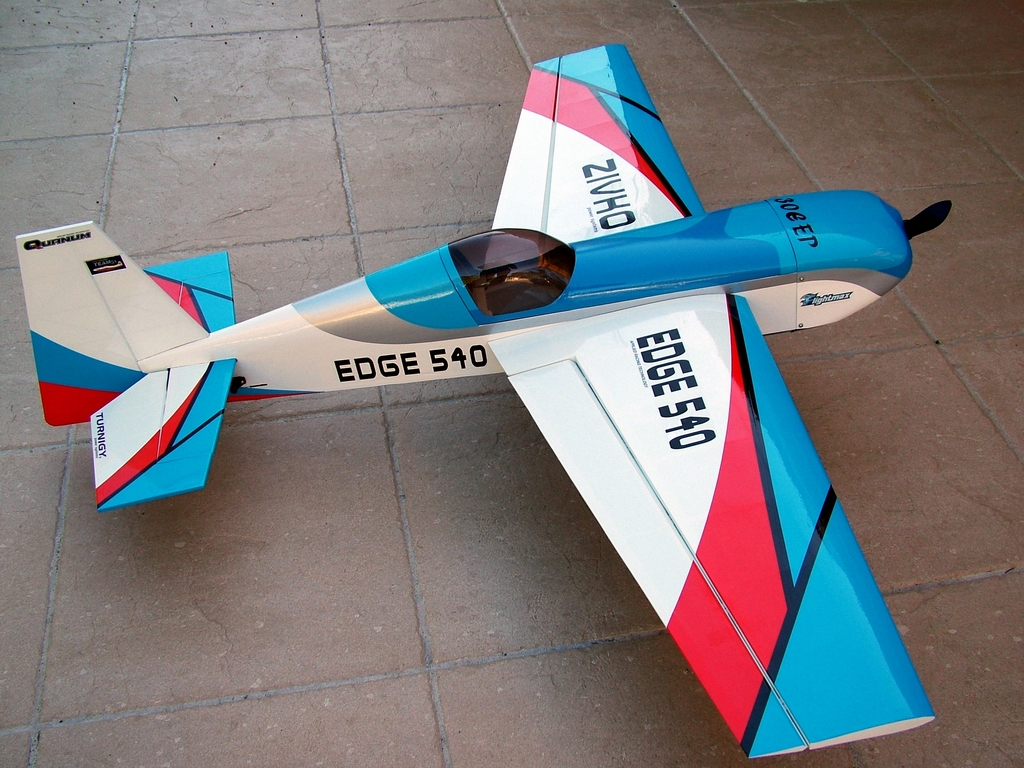

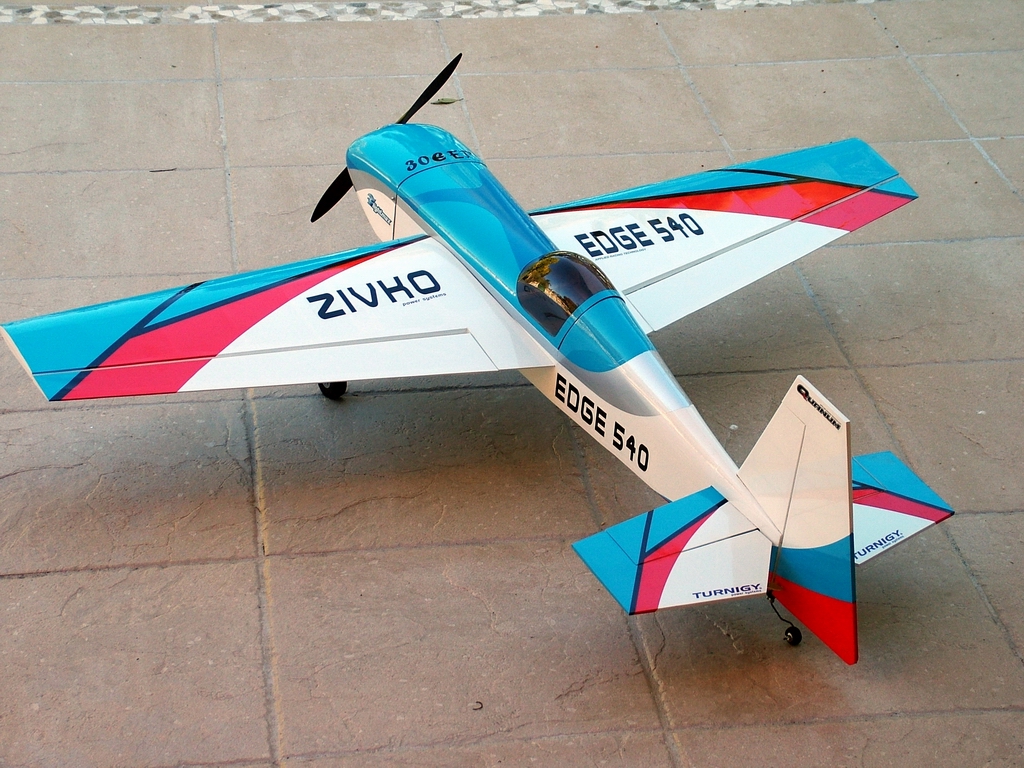

Statistics
Wing Span:
Length:
Root Chord:
Tip Chord:
Weight:
Wing Area:
Wing Loading:

Essential Features:







Radio Setup:


Battery Access:

Wheel Pants:


1,245mm
1,180mm
315mm
155mm
1050 - 1200g all up.
29dm²
With a 250gram 4S1P battery -> 41grams/dmē - slow flying!

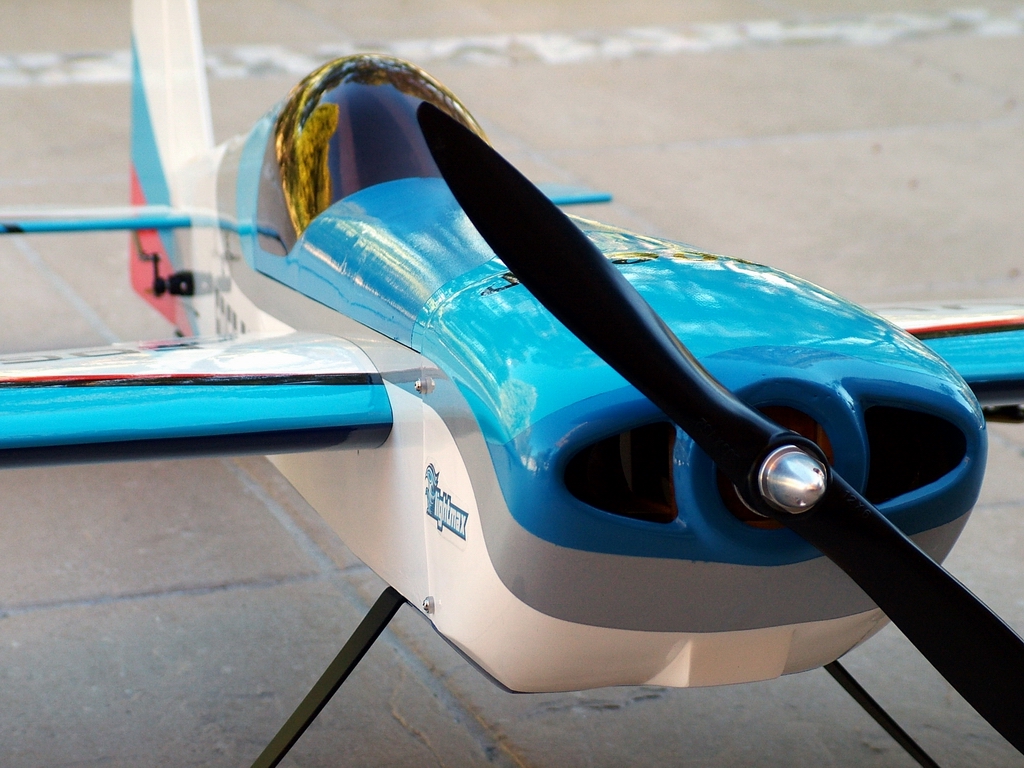

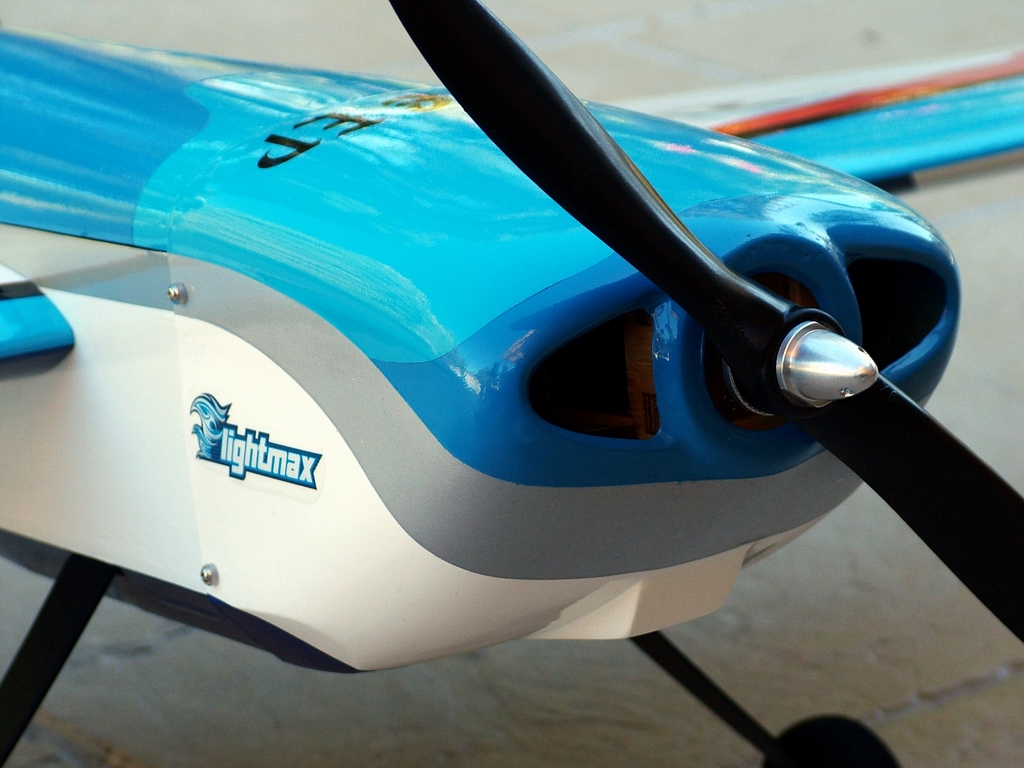

 - Electric Powered using:
   - 12" x 6" (305 x 152) blade.
   - Turnigy AerodriveXp 32 SK 35-48 1100kv 770w outrunner - LOTS of power for this model. 3D is easily available!
Unlimited Vertical is no problem.
   - K-Force 40amp controller.
   - 4S1P (2250) 20c LiPo battery - 7 minute flights doing full aerobatics and 3D!
   - No extra weight added to achieve COG. Battery adjustment used for fine tuning COG.

Spektrum DX7 transmitter with AR6200 receiver (full range) with 4 Blue Bird BMS 373MG servos.
Ailerons are independently controlled allowing for Flaperon setup.

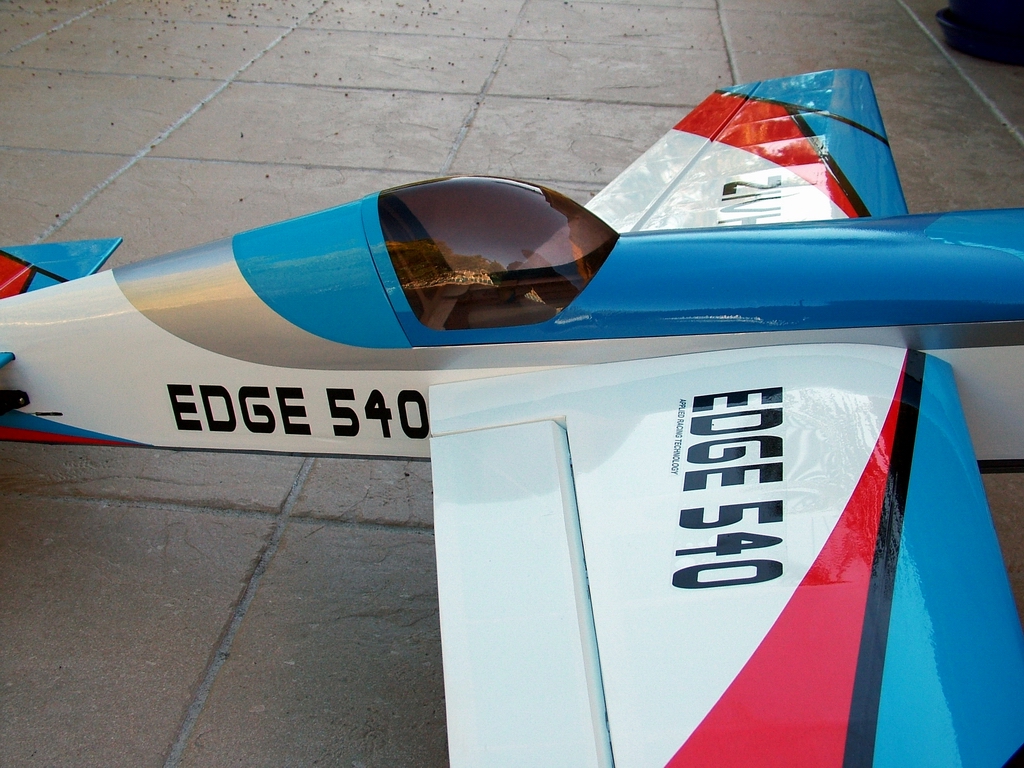

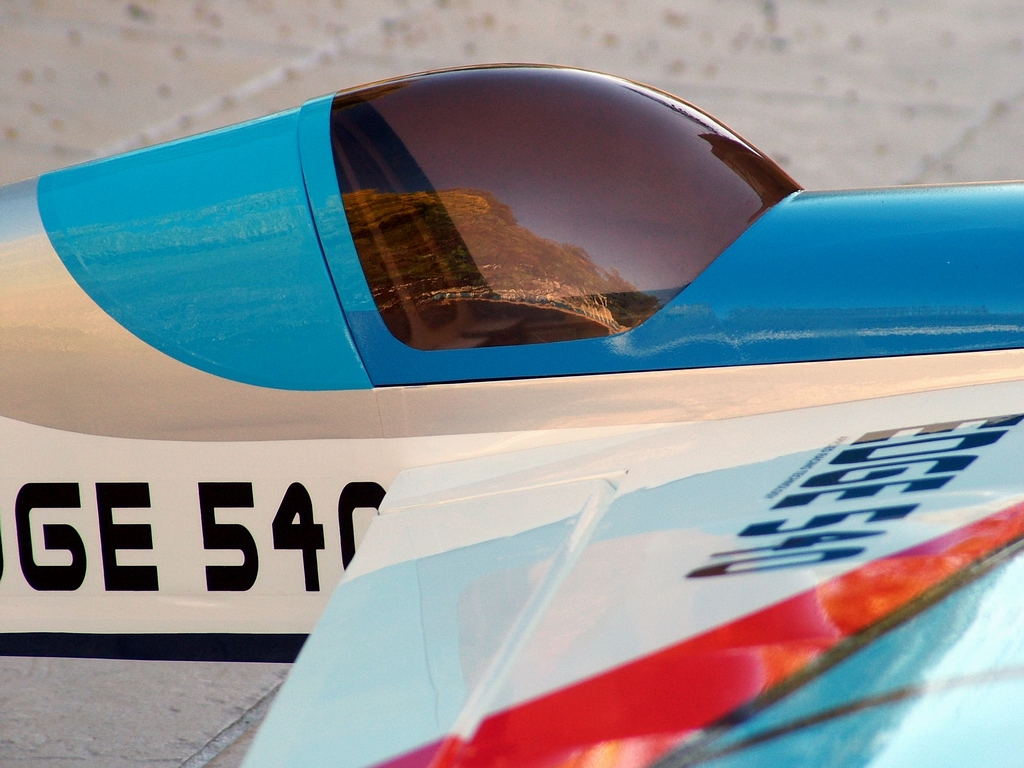

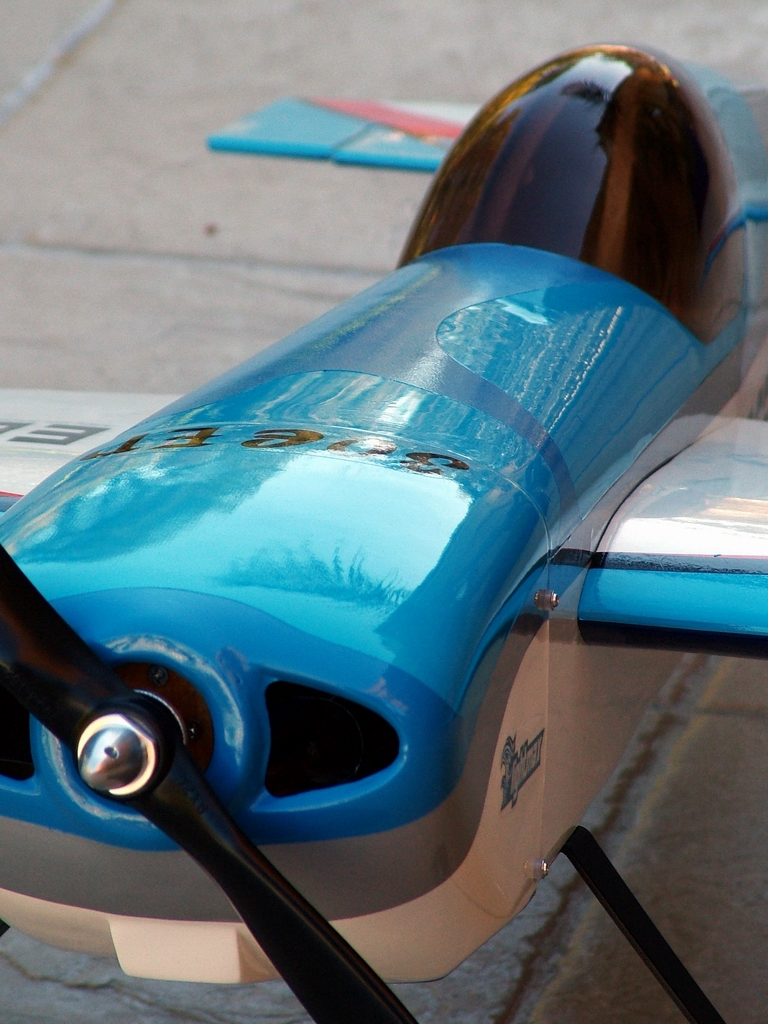

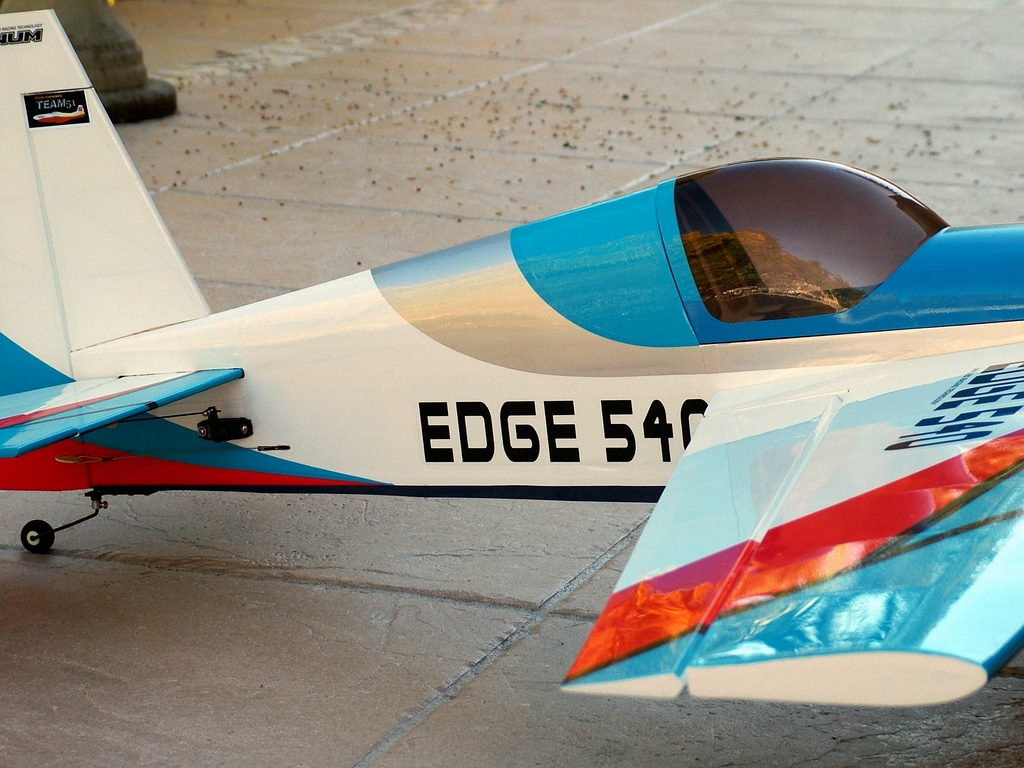

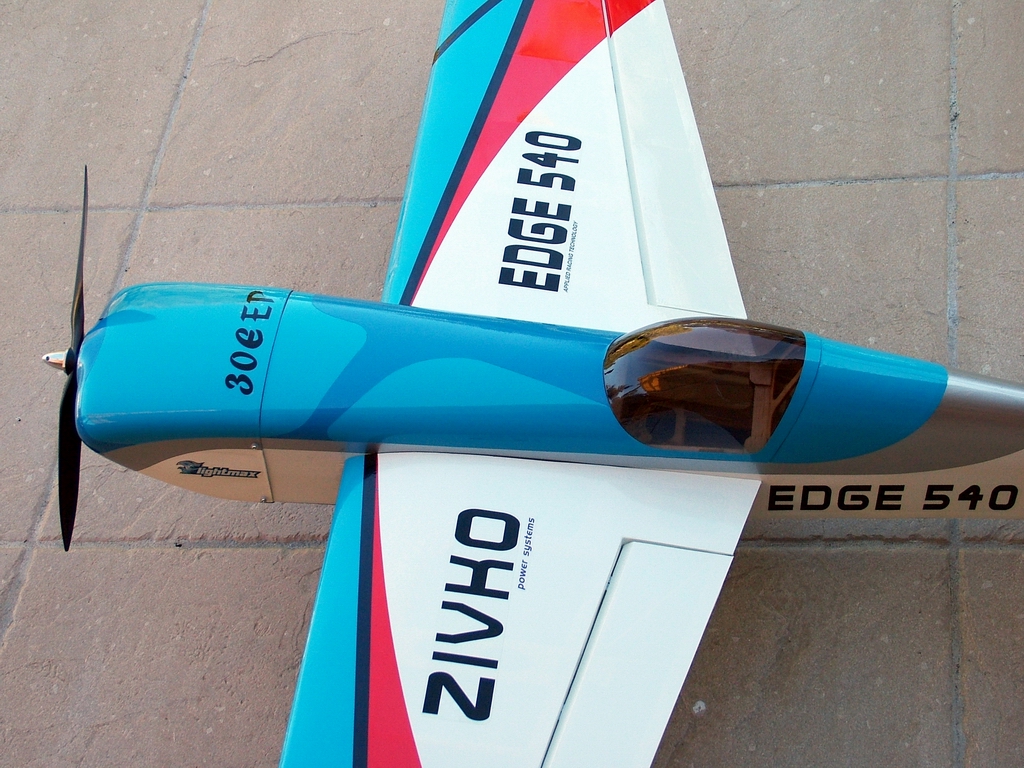

Beautiful, large magnetically retained canopy and hatch provide massive access to all the inner components.

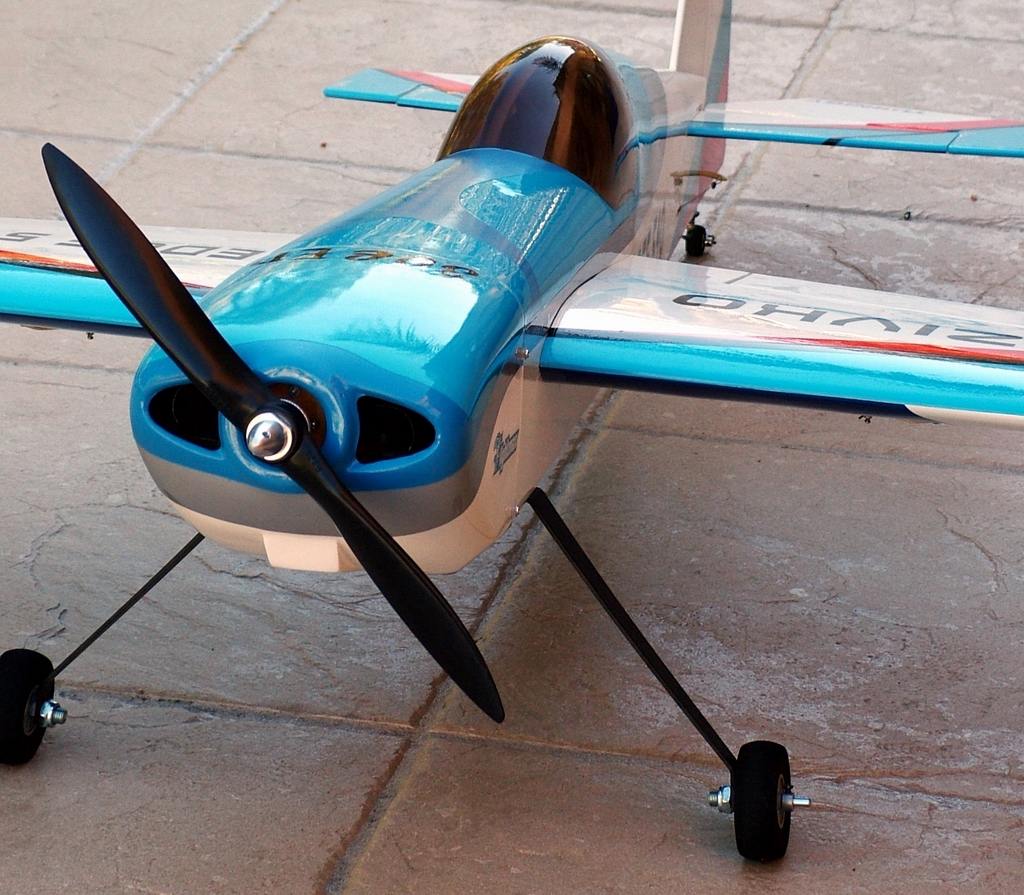

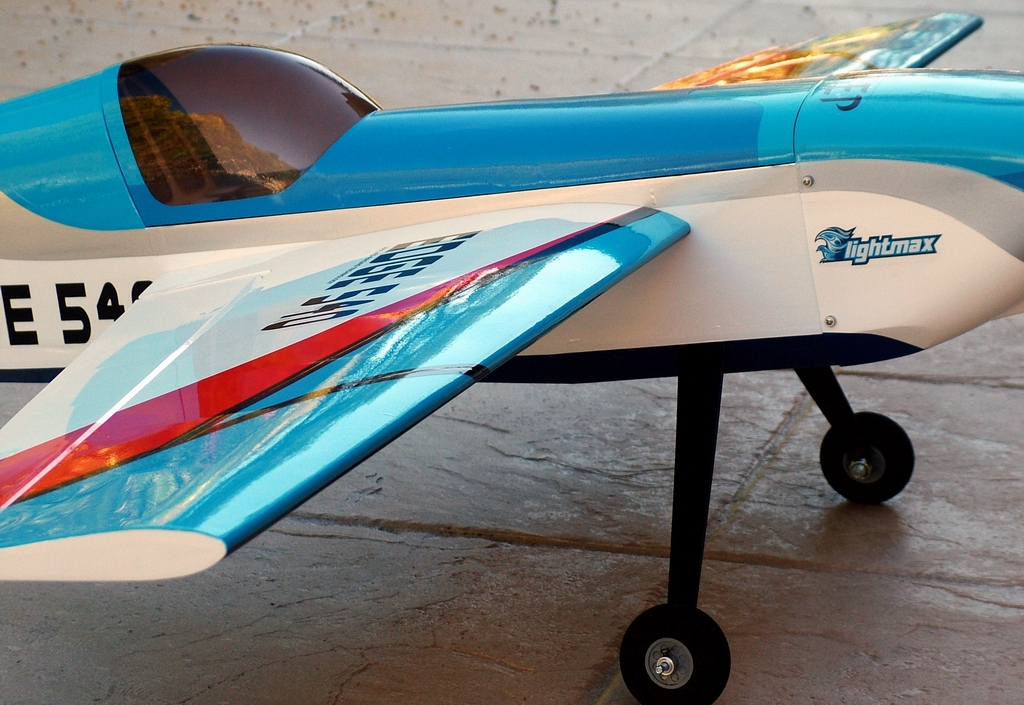

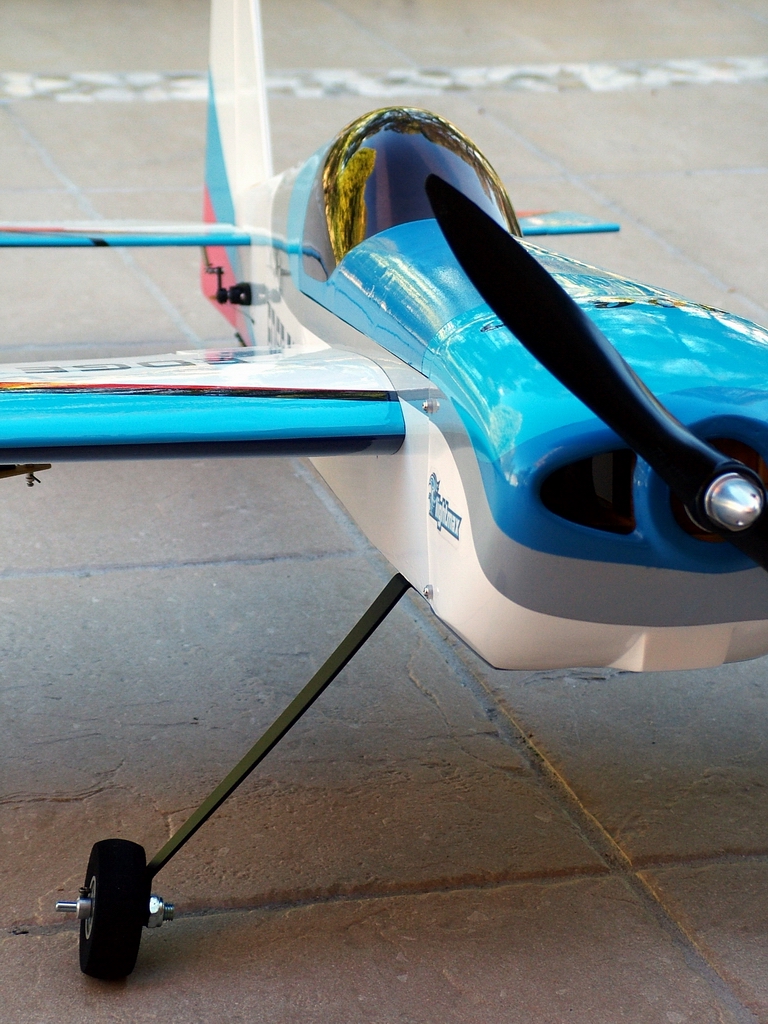

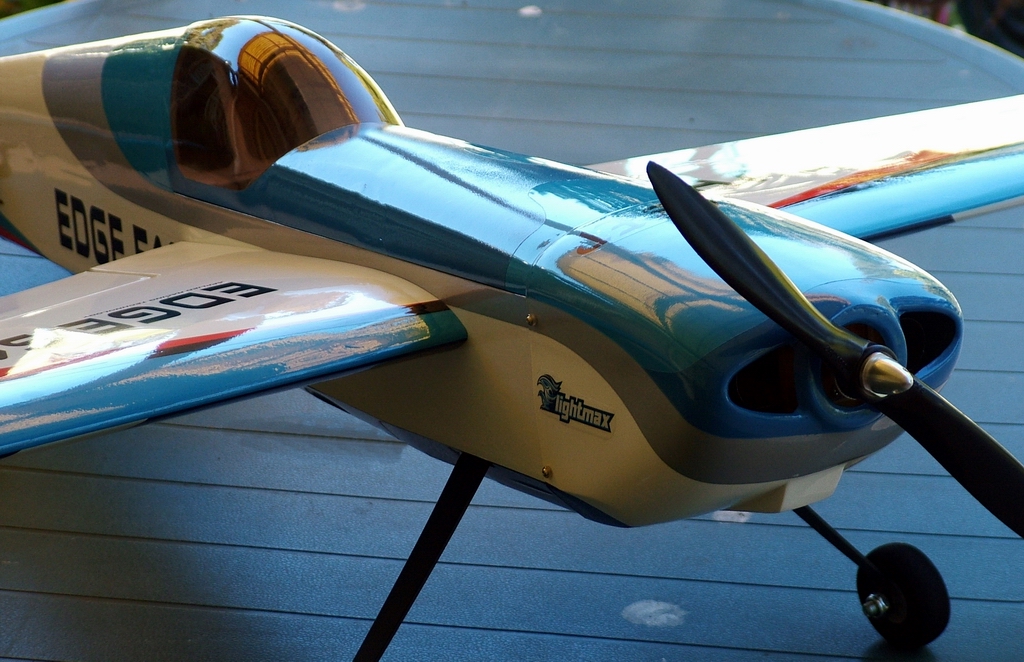

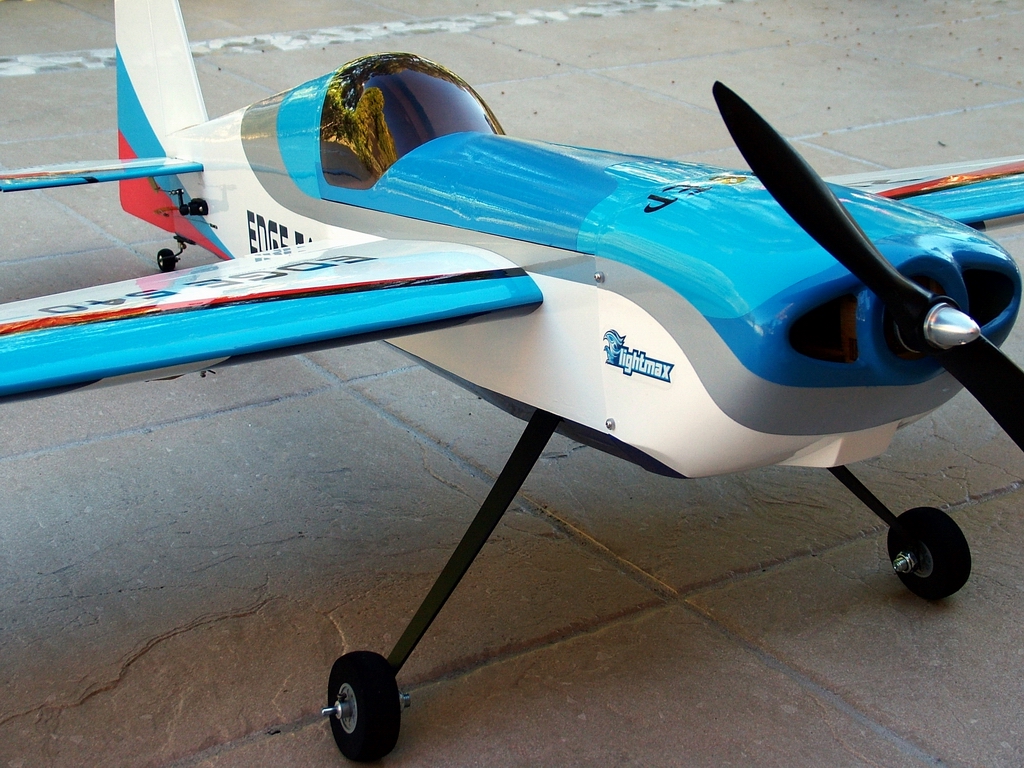

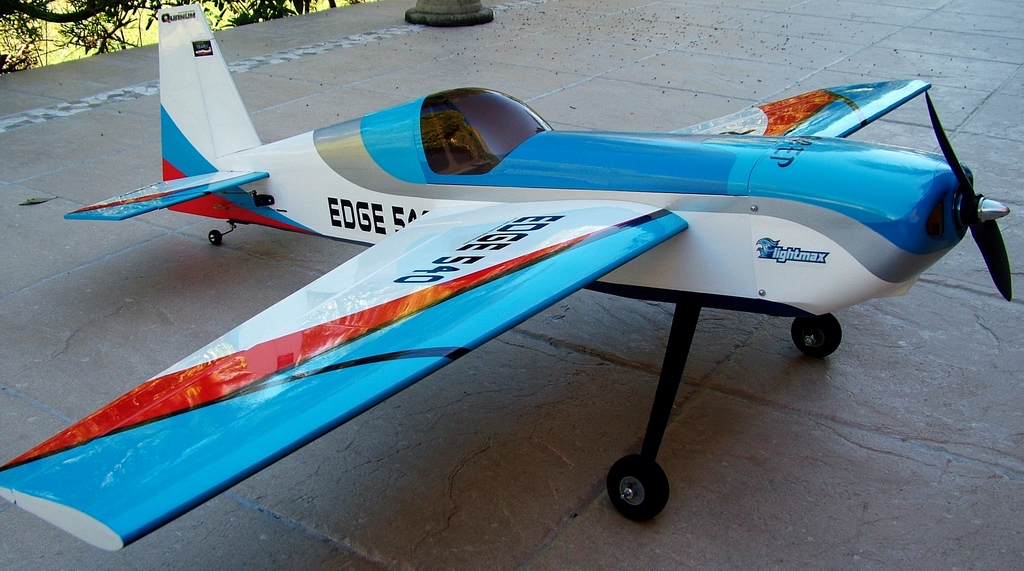

These were removed to allow larger wheels (50mm) which cope better with the Olympic Flying grass field.

Model: SK35-48 1100
Kv: 1100rpm/v
Turns: 3
Resistance: 25mOhm
Idle Current: 3.5A
Shaft: 5mm
Weight: 171g
Rated Power: 770w
ESC: 70A
Cell count: 3~5 Lipoly
Suggested Prop: 12*6, 12*6.5, 13*8
Power equivalent : .25~42 + glow engine

Specification:
Output: Continuous 40A, burst 57A up to 10 seconds.
Input Voltage: 2-6 cells lithium battery or 5-18 cells NIMH battery.
BEC: Twin voltage selection, 5.25v and 6v.
Control Signal Transmission: Optically coupled system.
Max Speed;
   2 Pole: 210,000rpm
   6 Pole: 70,000rpm
   12 Pole: 35,000rpm
Size: 59mm (L) * 27mm (W) * 12mm (H).
Weight: 38g.

Weight: 11.4 grams / 0.44oz
Dimensions: 24.5 x 11.5 x 23 mm / 0.99 x 0.46 x 0.91 inch
Torque At 4.8V: 1.6kg/cm , 22 oz/in
Torque At 6.0V: 2.3kg/cm , 28 oz/in
Speed At 4.8V: 0.13sec / 60 deg at no load
Speed At 6.0V: 0.11sec / 60 deg at no load
