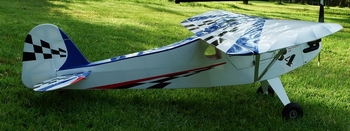

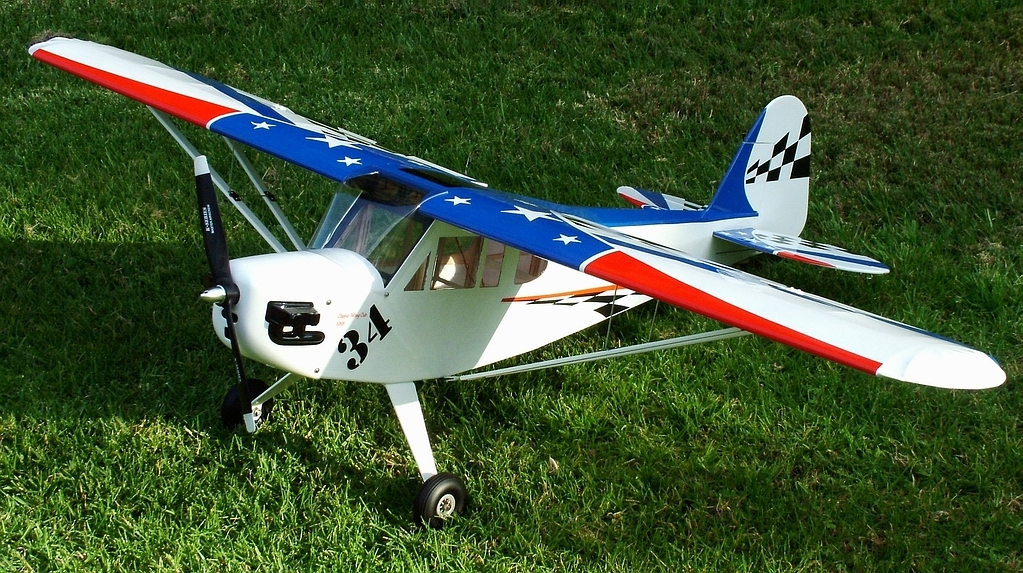

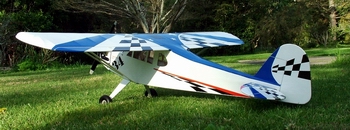

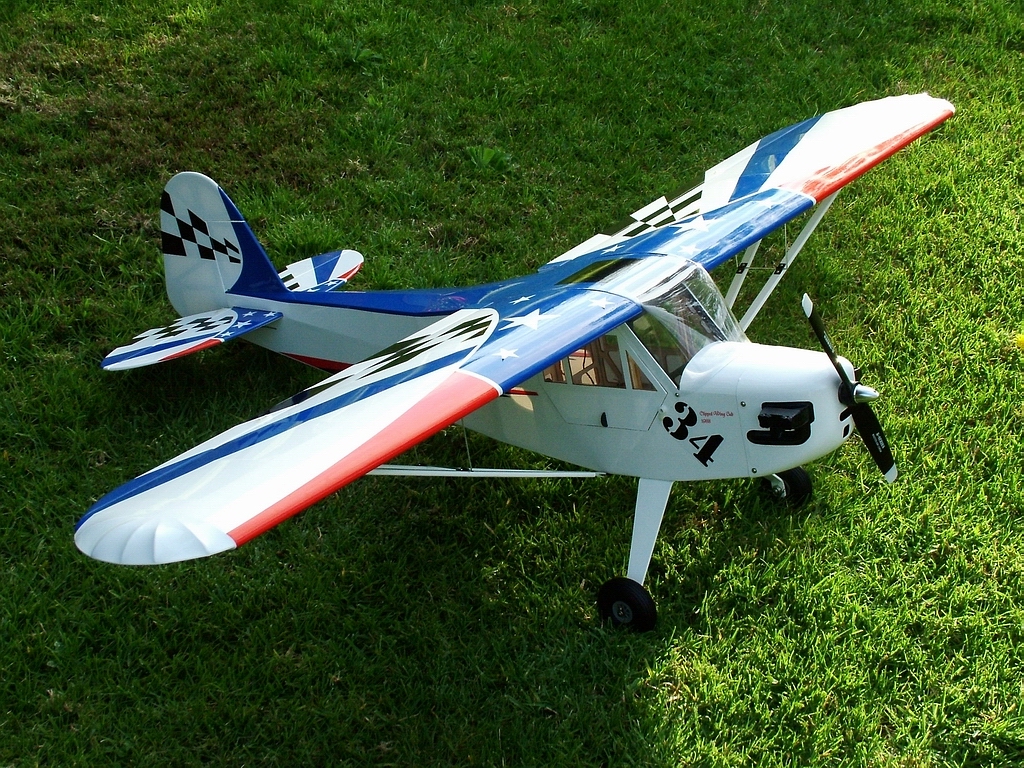

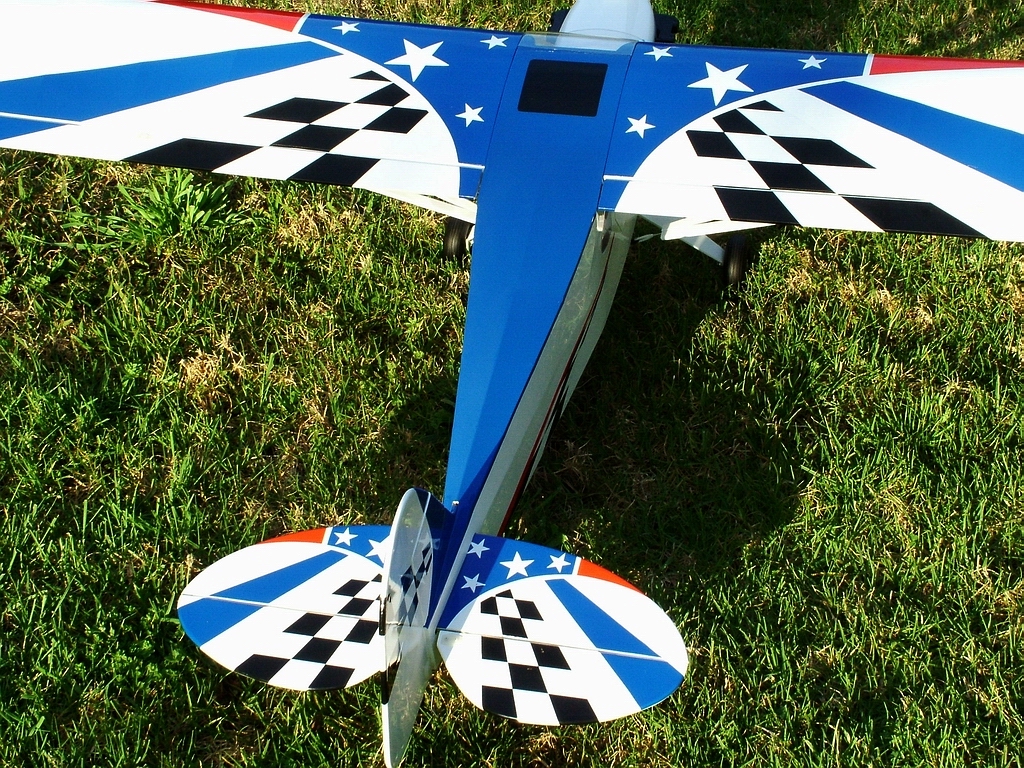

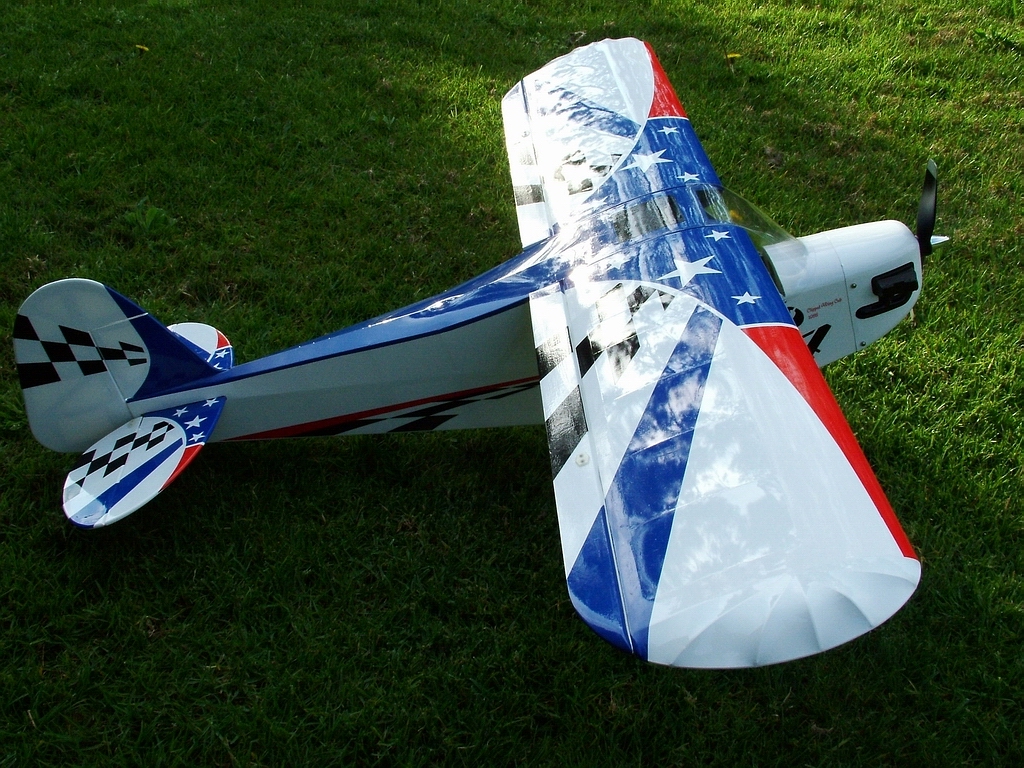

HK Clipped Wing Piper Cub 1600mm   Aug-2011



Statistics
Wing Span:
Length:
Weight:
Wing Area:
Wing Loading:

Essential Features:






Radio Setup:



Comments:


1,600mm
1,200mm
2,000 grams with 4S1P 2200 battery.
42.8dm²
Approximately 46grams/dmē - very light weight and forgiving!

 - Electric Powered using:

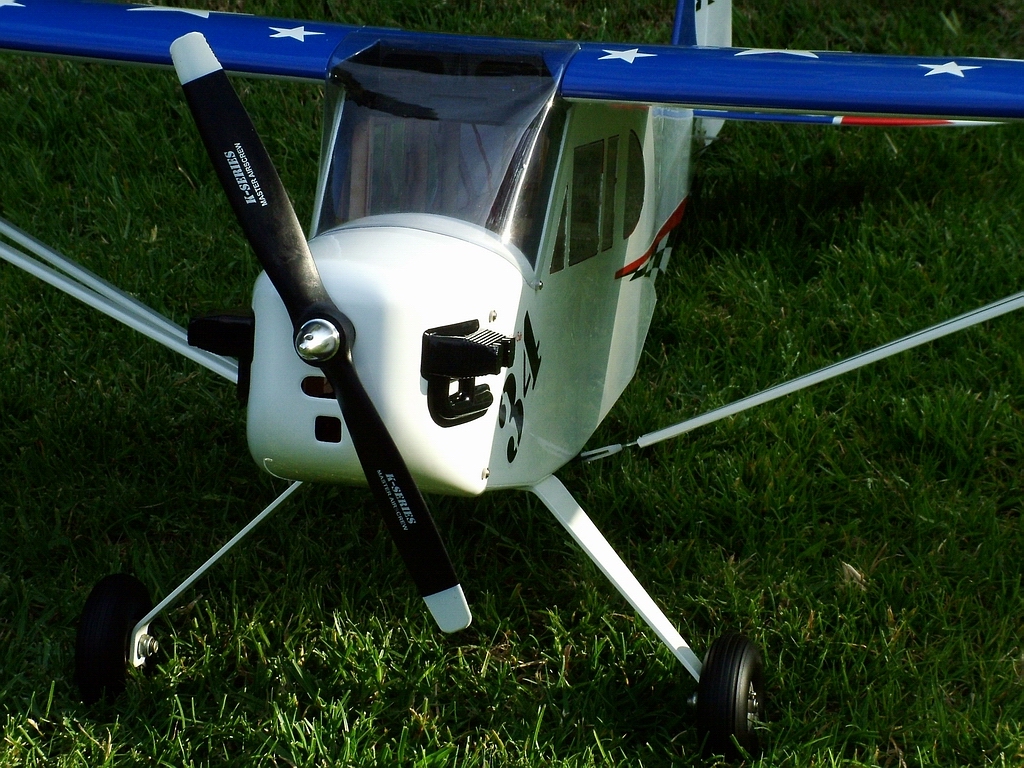

   - 13" x 8" (330 x 203) Master Airscrew prop.
   - E-Max BL2826/06 850w outrunner - Enough of power for reasonable aerobatics.
   - TURNIGY Plush 60A Speed Controller.
   - 4S1P (2200 or more) 30c+ LiPo battery. 4.5 Minute flights.
   - No extra weight added to achieve COG. Battery adjustment used for fine tuning.

Spektrum DX7 transmitter with AR6200 receiver (full range) with
4 x Futaba S3003 standard analog servos - very nice and quiet.

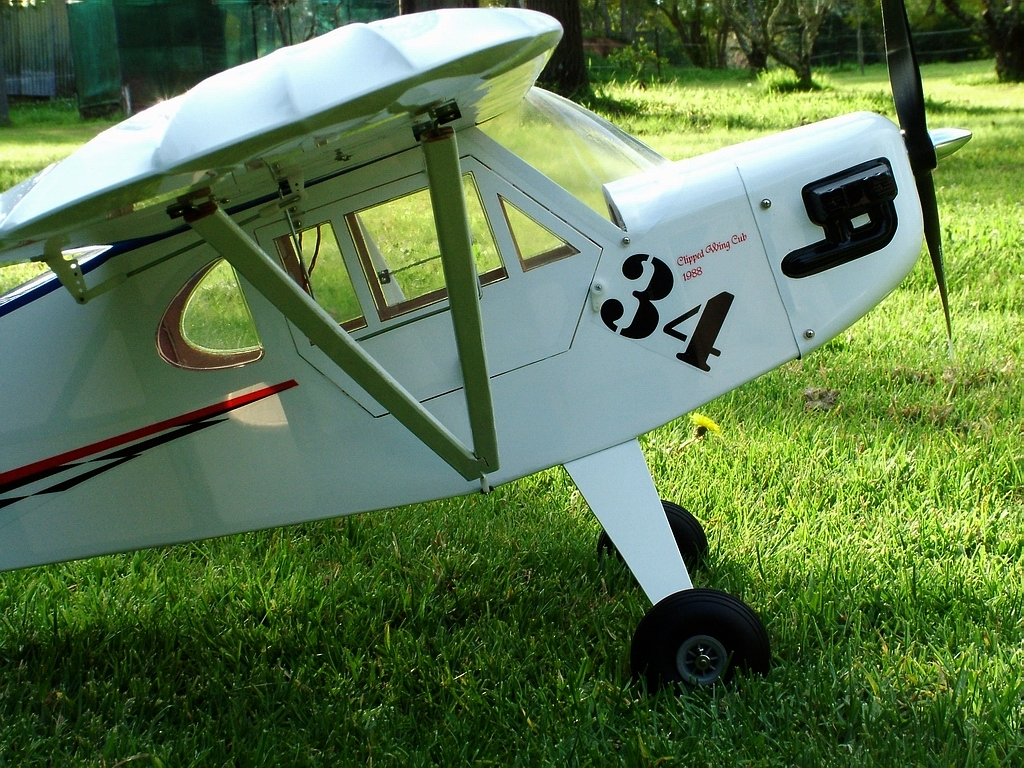

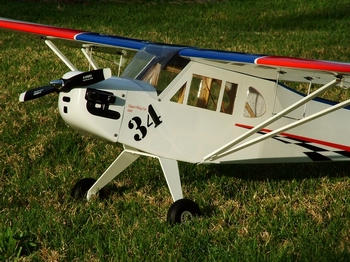

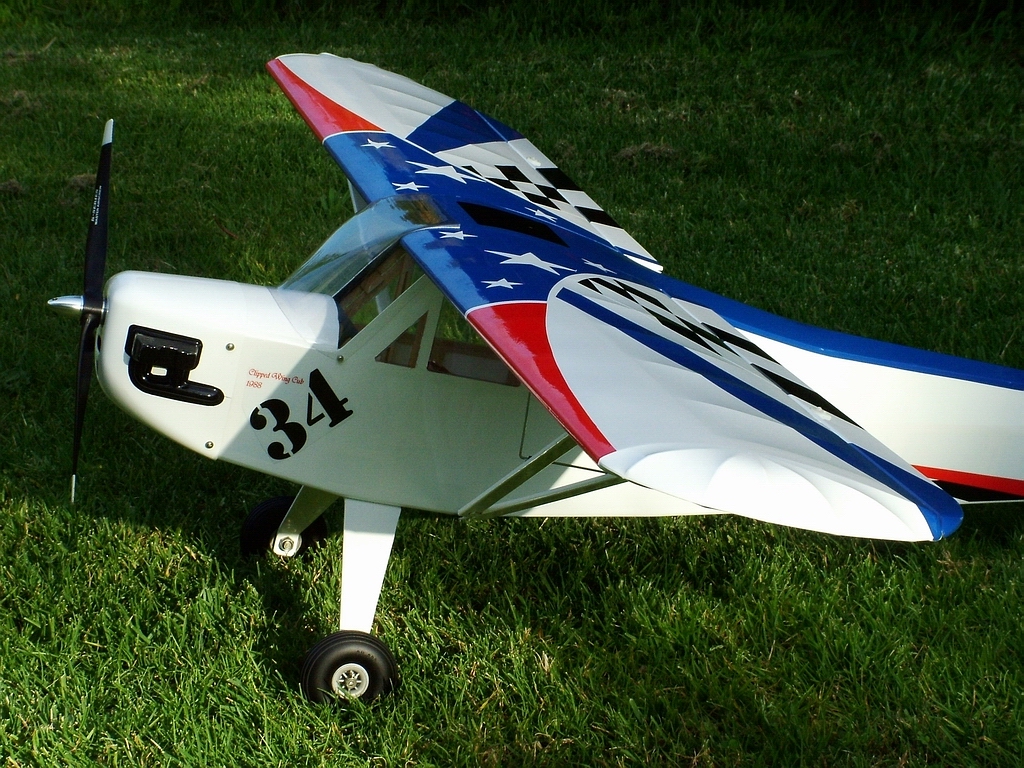

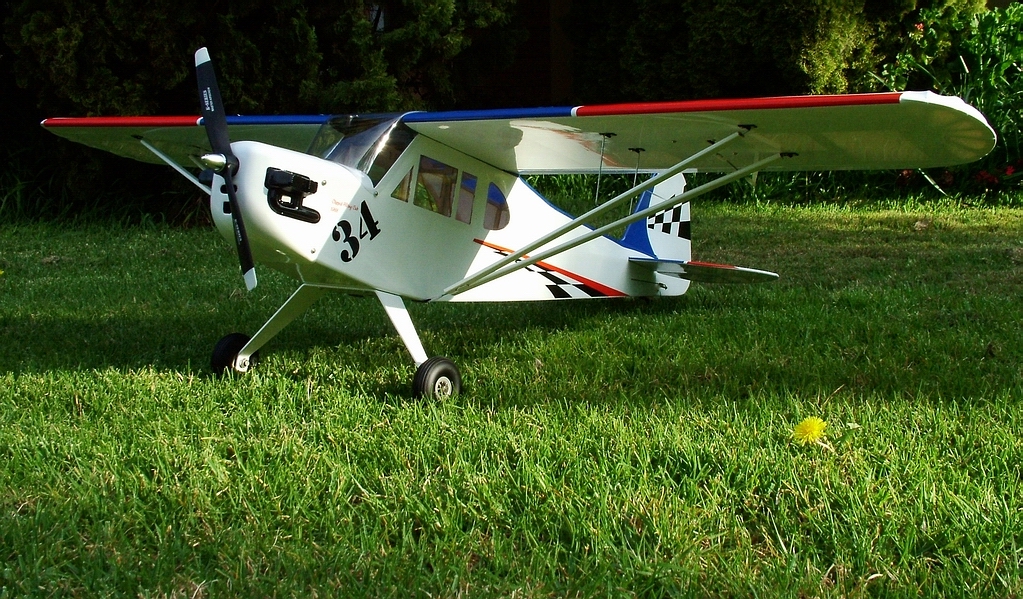

Non-standard, larger wheels.

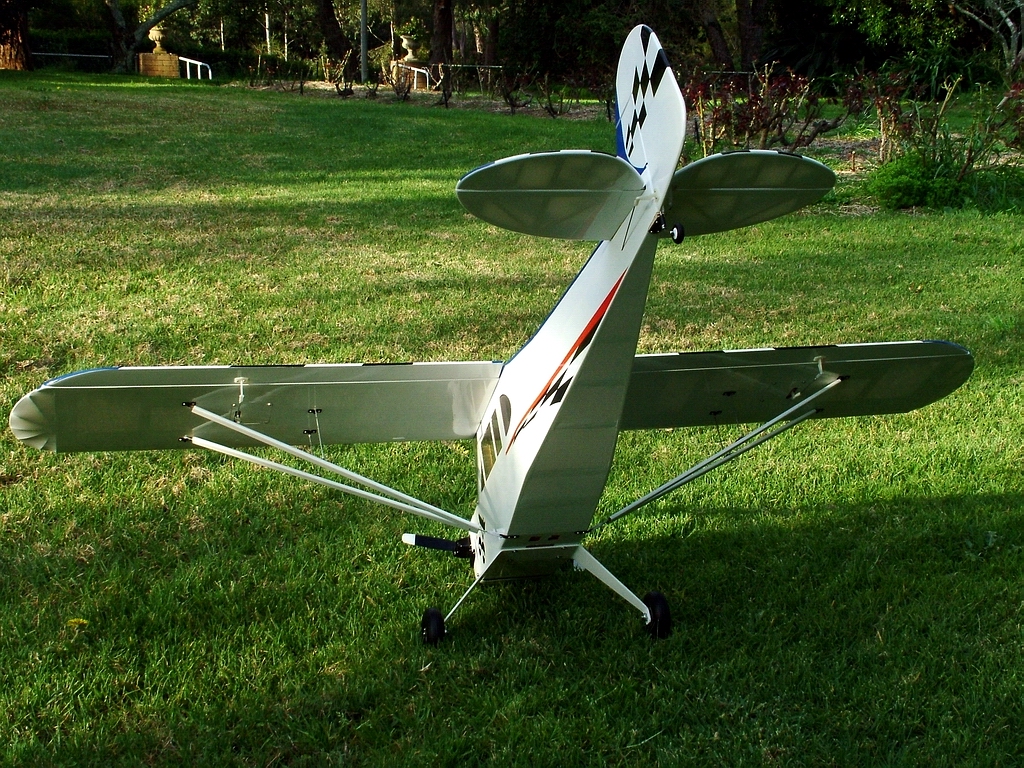

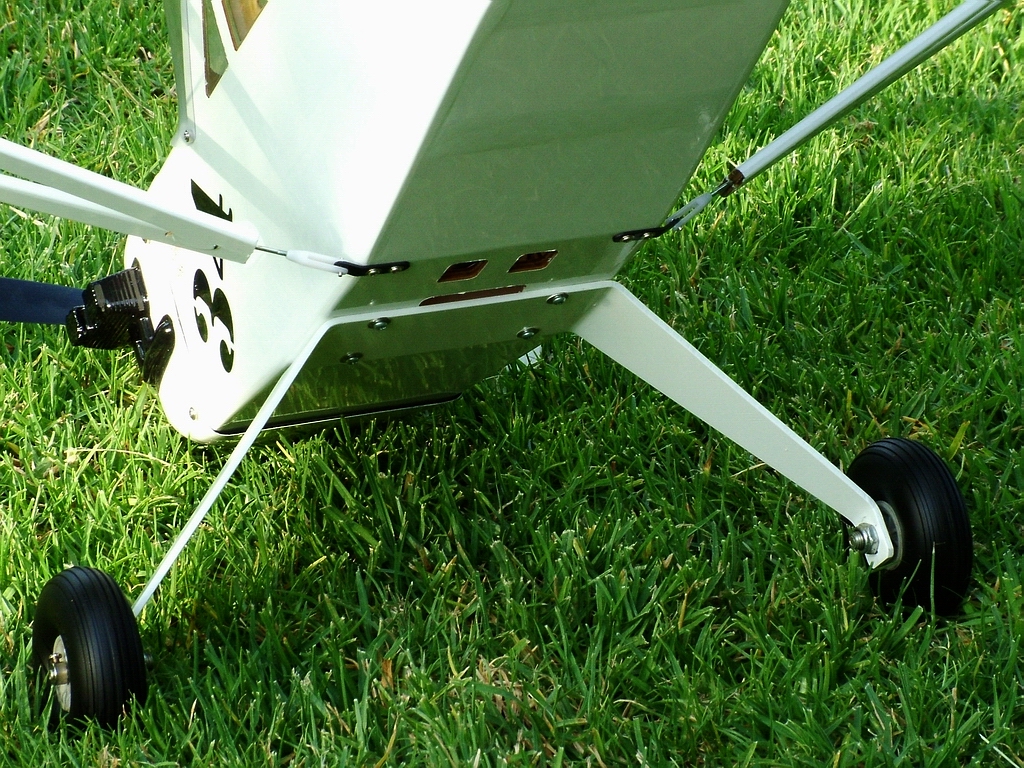

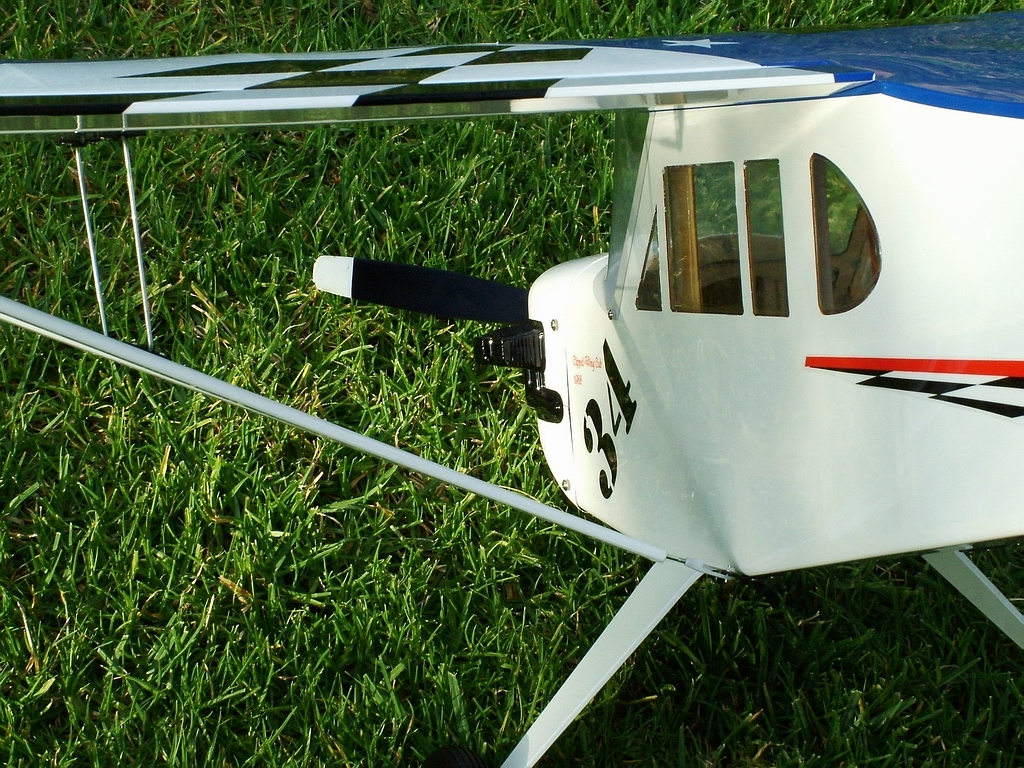

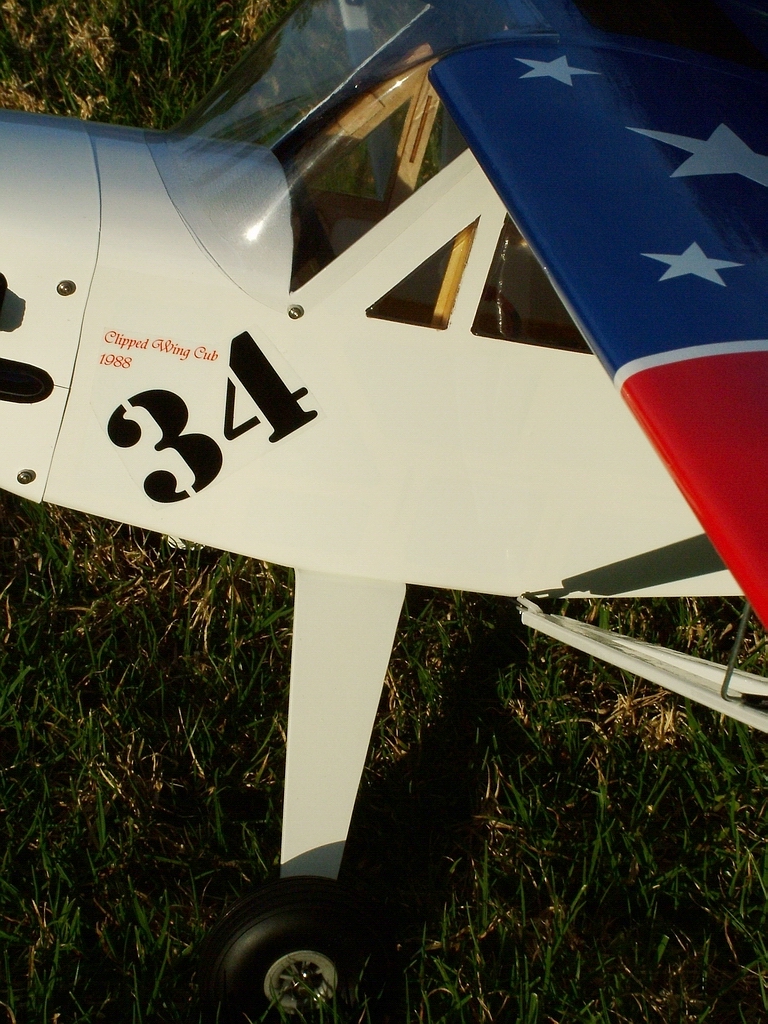

Complex, poor HK undercarriage replaced with 3mm aluminium, home made undercarriage.

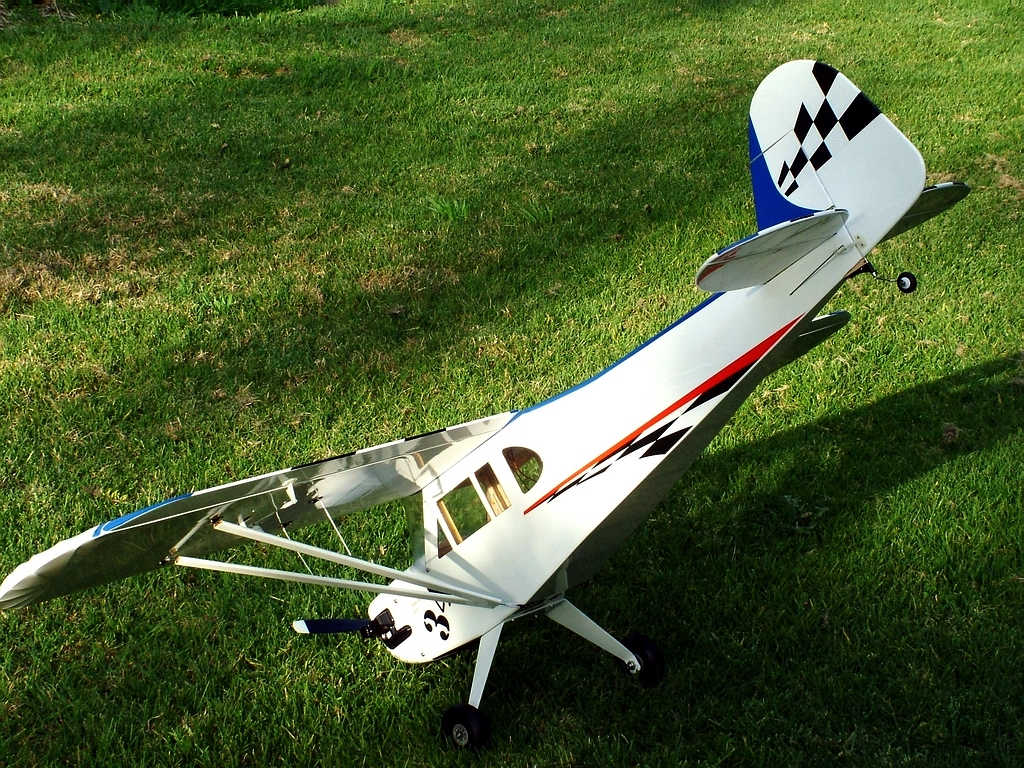

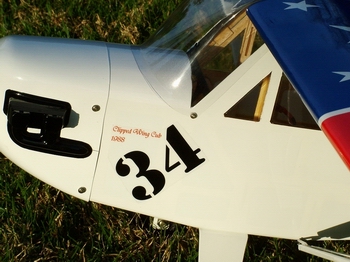

Battery change through side door. Side door mounting changed to top hinges and rotating retainer.
Four servos - 2 in the wings (flaperons) plus rudder and elevator.

Click on photos for larger versions. Click on component descriptive text to visit the
web site for a lot more detail.

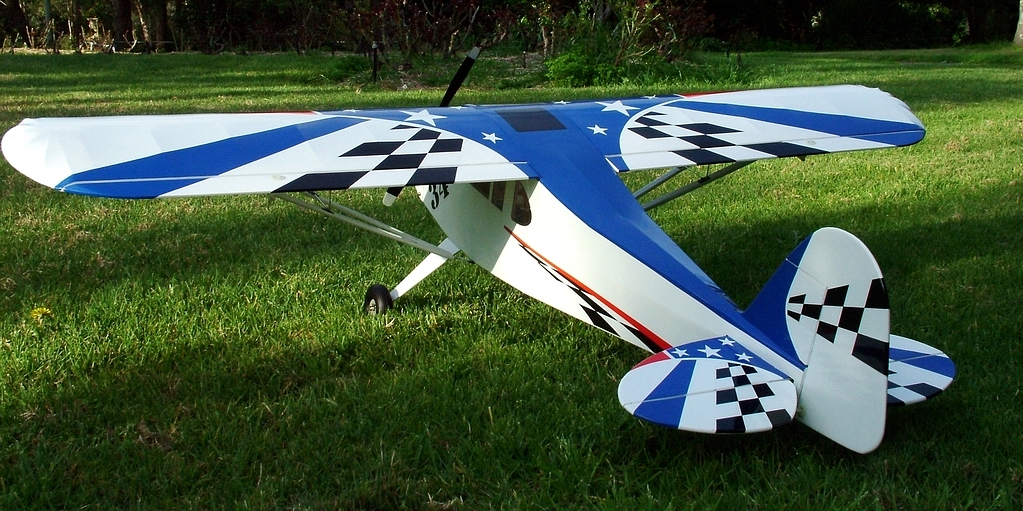

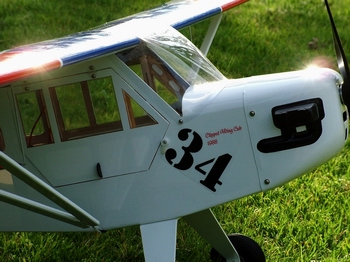

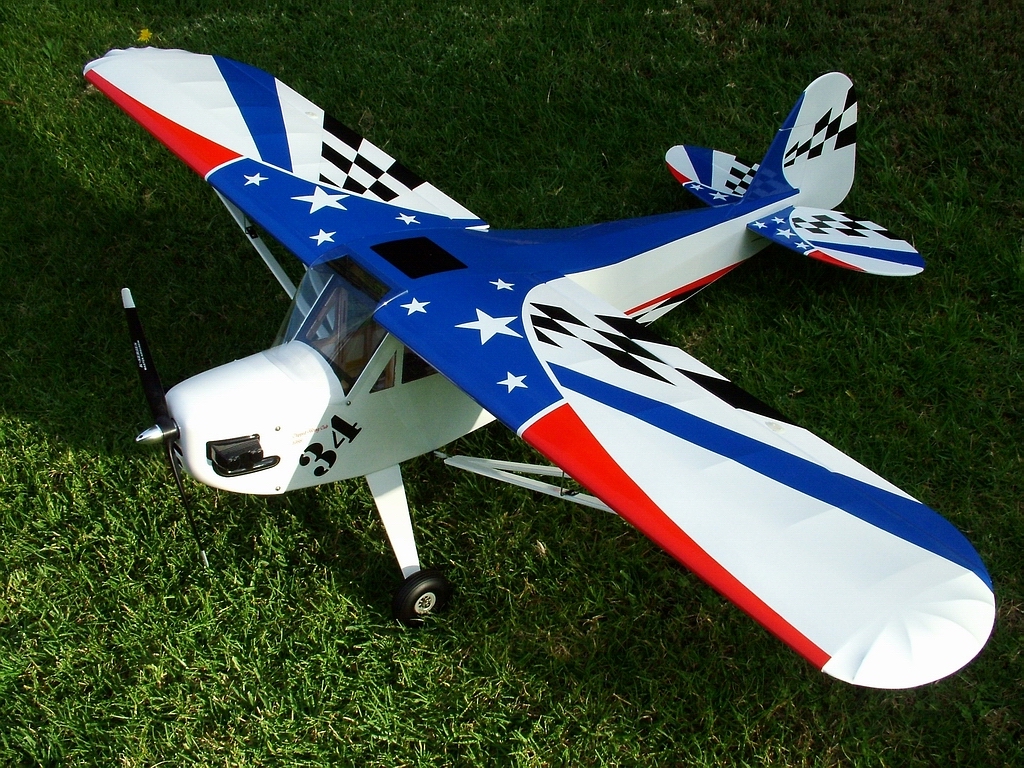

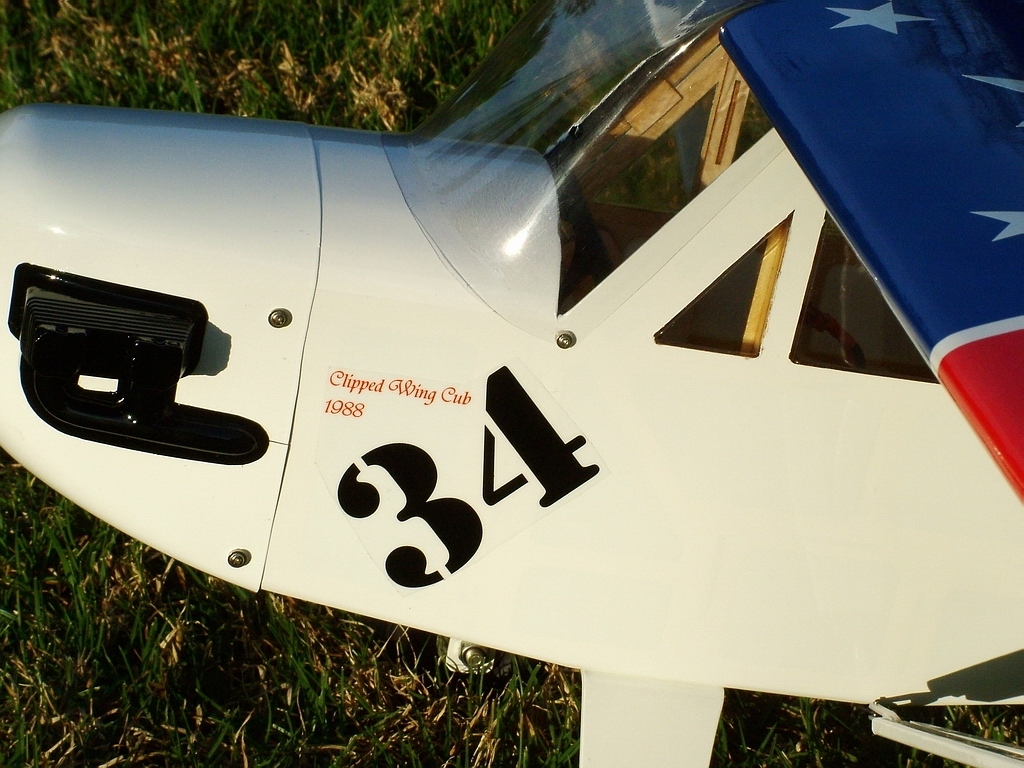

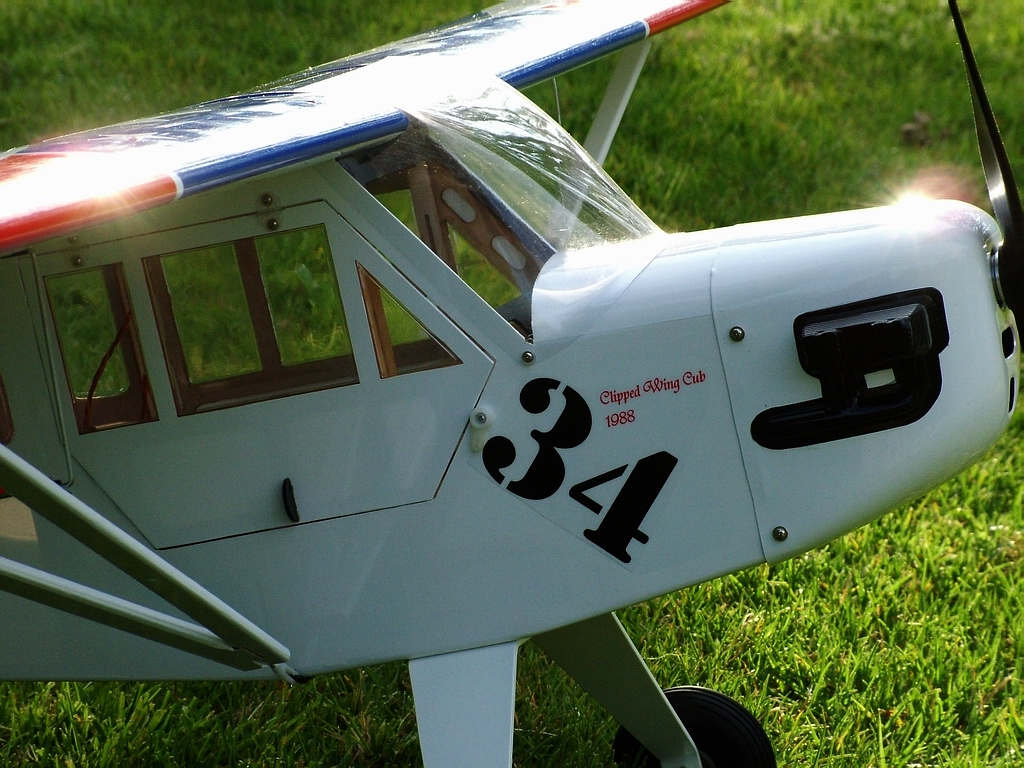

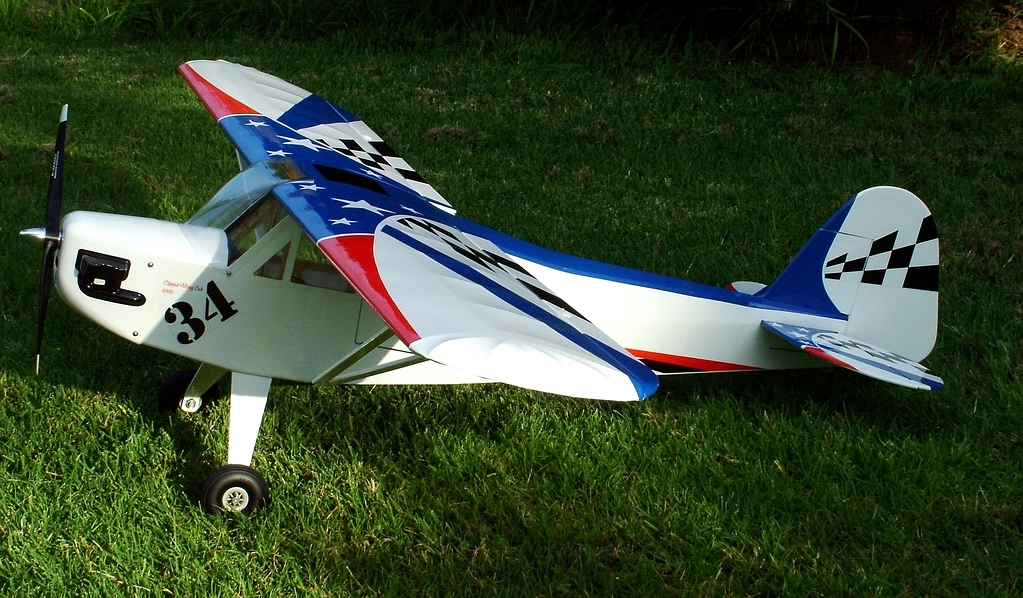

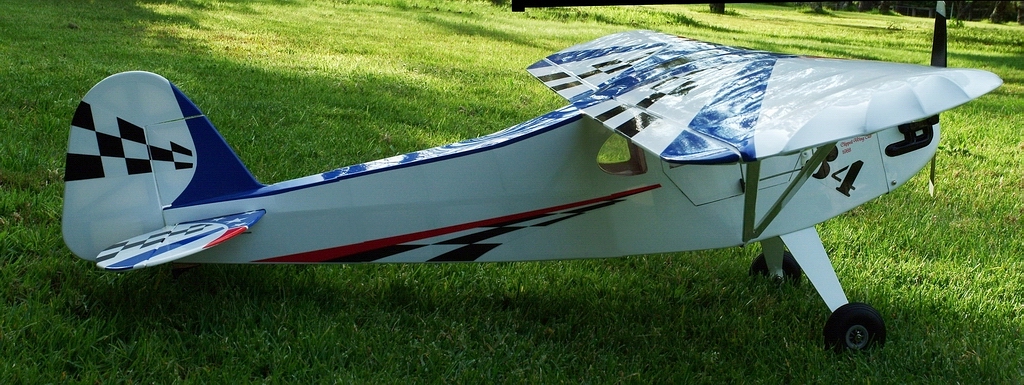

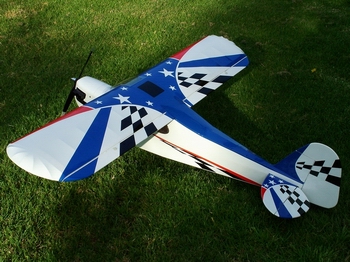

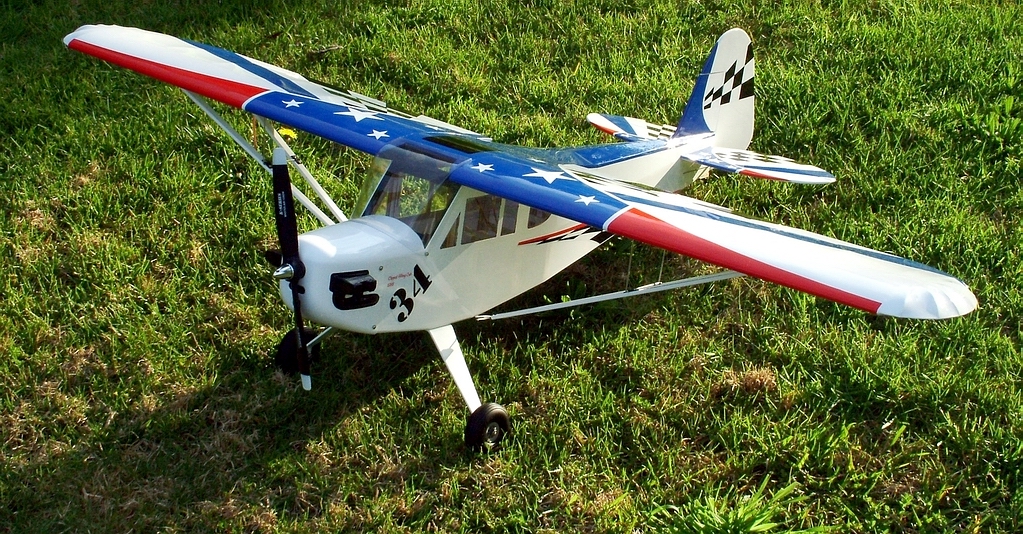

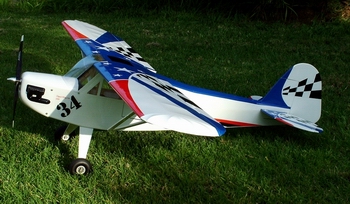

Aug 2011 - Completed assembly of this plane and have flown many times at Fagan Park.

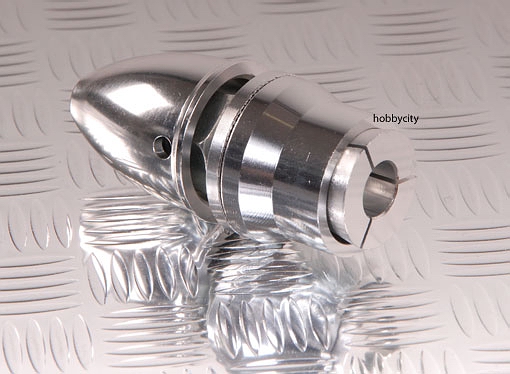

8mm Prop Adaptor

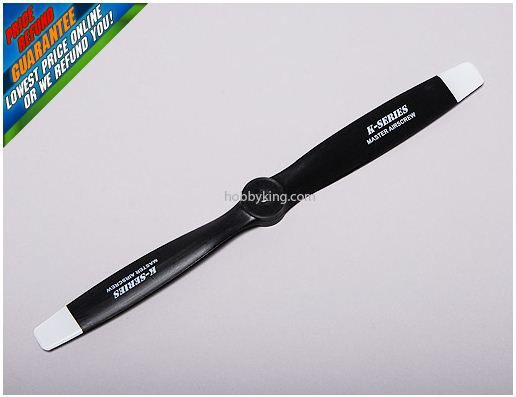

Master Airscrew 13x8 Propellor

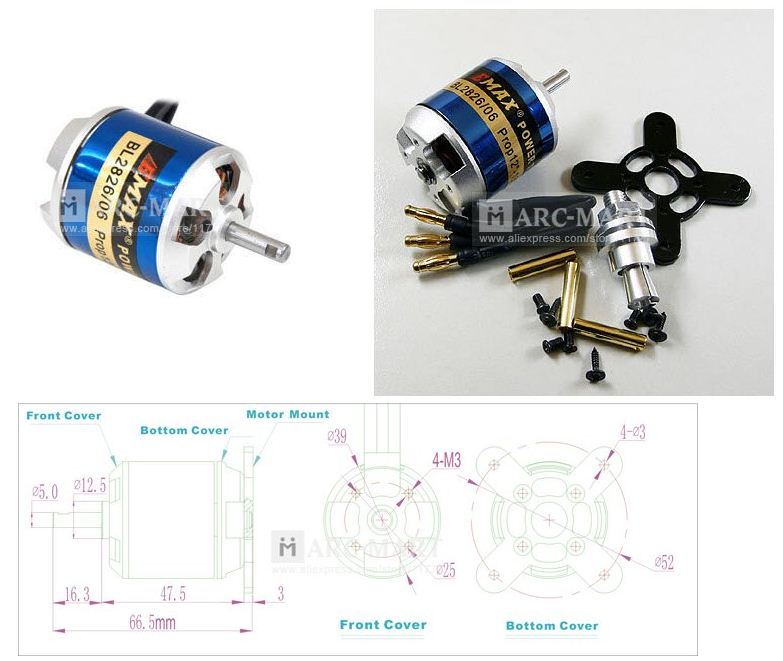

Emax BL2826/06
850kv Outrunner

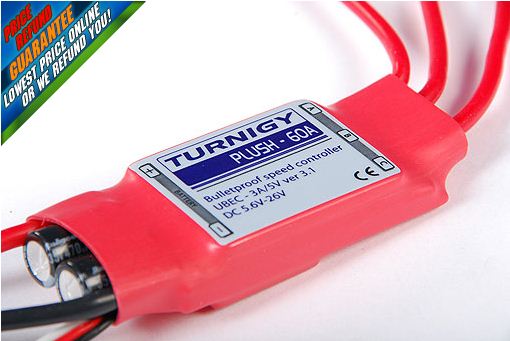

Turnigy Plush 60Amp ESC with UBEC

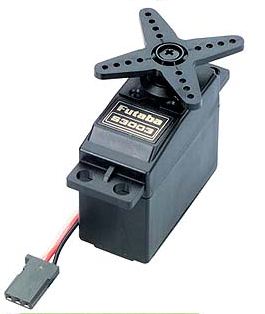

4 x Futaba S3003 Std Servos
