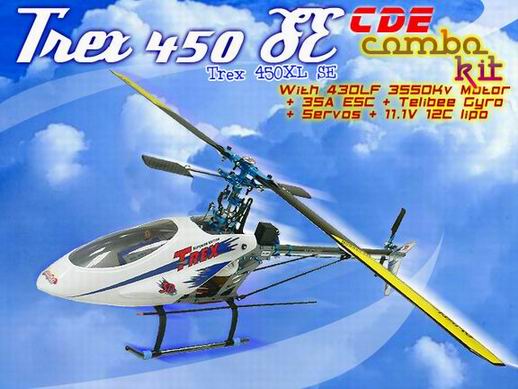

Package
as bought on 13-June-2006
|
![](Images/PackageOverview.jpg) |
Specifications
- Align 430LF 3550Kv Brushless Motor
- Align BL35G 35A ESC
- Telibee RCE500 Gyro (US$70 value)
- 4 x Servos (US$100 value)
- 1 X 11.1V 2200mah 12C Lipo (US$45 value)
Requires a Transmitter and Receiver
The T-Rex 450 Superior Edition (eCCPM) represents state
of art micro helicopter technology, utilizing the latest
design techniques and highest material quality, aluminium parts
are anodised in a pleasant blue colour and silver SSG carbon
assembly. This kit is for flyers who want uncompromising
performance and quality. The SE arrives 80% pre-assembled!
|
Other features
of this helicopter:
- New CNC SSG carbon frame only 1mm thick, improves rigidity and
is perfect for 3D flying.
- Servos arranged for CCPM.
- New aluminum parts
for prompt, precision actions.
- The SSG battery mounting plate connects to the main frame. It moves
the centre of gravity closer to the rotor blade, reducing any
required correction when the heli is rolling.
- Rigid CNC aluminium rotor head for precise and smooth
movements.
- Using Ball and Hill mixing control systems. Through
its simple design, the Ball control system combines with the power saving of
the Hill system and CCPM control to simultaneously operate 3 servos
for aileron, elevator and pitch. This CCPM control system is
great for 3D flight control.
- New streamlined carbon tail rotor blades make the gyro more
efficient.
- New CNC tail rotor control set for smooth pitch travel.
- Add
weights to the flybar paddles for stable, normal flight
mode. When flying aerobatic, it is better to remove these weights to
fully appreciate the flexibility of 3D moves.
- CNC Metal tail unit and tail holder employ high rigidity aluminium
to better resist crash impacts.
- 32 Precision bearings included.
- Employs CNC high precision aluminium alloy linkage balls.
- Stable and sensitive mixing lever design! Best
indicated during 3D flight.
- Special adjustable pitch, hold rotation
and tail rotor drive belt systems.
This helicopter is a work of great originality!
|
![](Images/RotorHead.jpg) |
![](Images/SwashPlate01.jpg) |
![](Images/SilverBody.jpg) |
![](Images/SwashPlate02.jpg) |
![](Images/ReceiverMount.jpg) |
![](Images/TailAssembly01.jpg) |
![](Images/TailAssembly02.jpg) |
![](Images/Align430LF3550Motor.jpg) |
![](Images/Align35AEsc.jpg) |
![](Images/TeleBeeGyro.jpg) |
![](Images/Servos.jpg) |
![](Images/11_1_1800mahLiPo.jpg) |
|
|
Data Sheet:
- Length:650mm
- Height:230mm
- Main Rotor:680/700mm
- Tail Rotor:150mm
- Motor Gear:15T/13T/11T
- Main Gear:150T
- Autorotation Tail Drive Gear:109T
- Tail Drive Gear:22T
- Drive Gear Ratio:
- 1:10:4.95/1:11.5:4.95/1:13.6:4.95
- Weight(without power system):330/355g
- Weight(including power system):About 620-670g
|

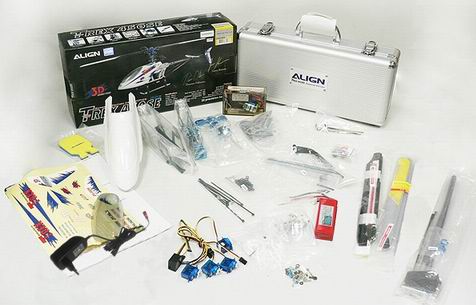

Package Includes:
- T-REX 450SE CDE KIT (unassembled) -
Silver CF Main Frame
- Telebee Head-Lock Dual Rate Gyro RCE500
- Fiber Rotor Blade 325mm x 1
- Wooden Rotor Blade 315mm x 1
- Lithium Battery 11.1V 1800mah Lipo 12C X 1pc
- Align 430LF Brushless Motor (3550KV)
- Align Brusheless Programmable Speed
Controller with Governor mode BL35G (35A)
- 4 x Servos
- 110-220V Lipo charger
- English Manual
|
![](Images/AllComponents.jpg)
|
(for AUD687.07 including all extras and shipping) |
